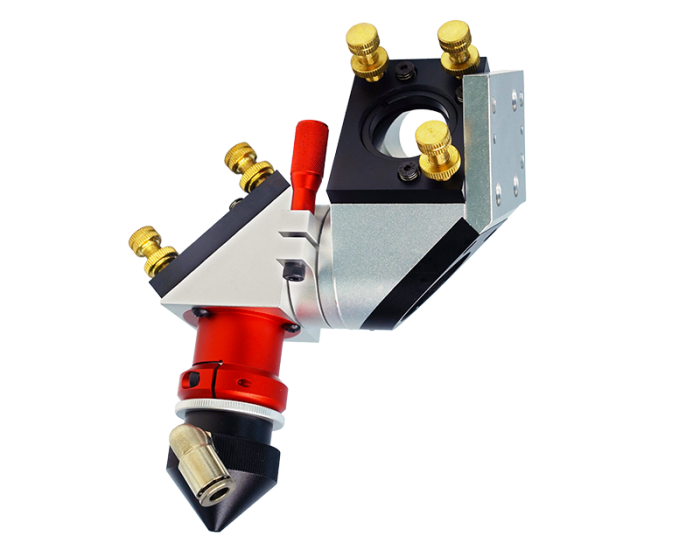

Adjustable angle laser head, the laser beam enters the inner cavity of the cutting head through the reflector, and through the focusing lens, the energy of the laser beam is concentrated on a certain point, and the surrounding materials are melted at high temperature to form processing marks to achieve the cutting effect.

Adjustable laser head, the angle of the laser head can be manually adjusted according to cutting requirements. It can process a variety of materials, such as acrylic, density board, wood, cloth, etc.

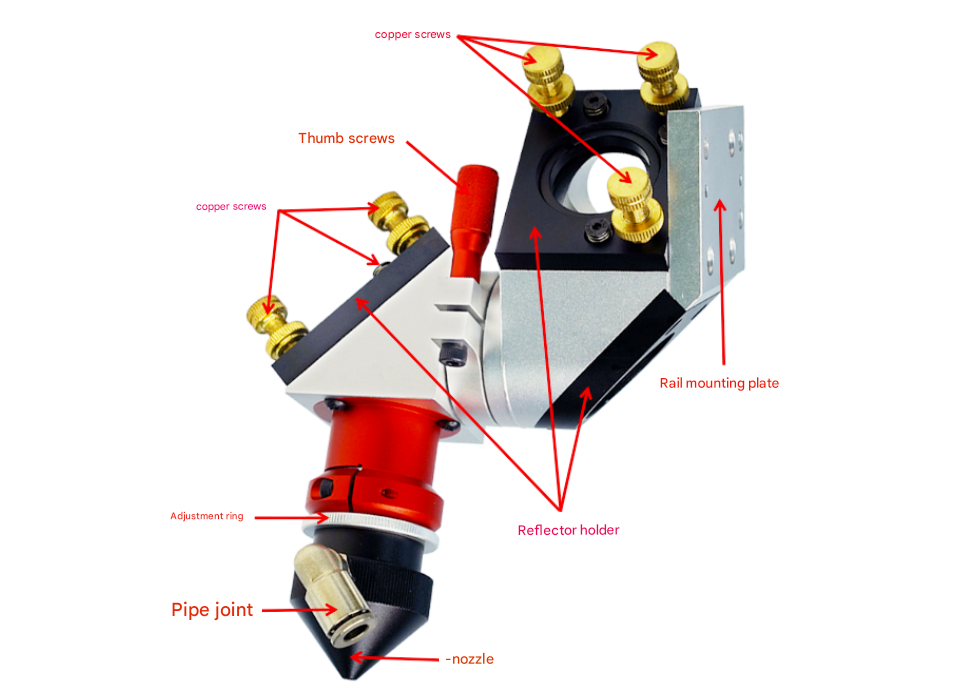

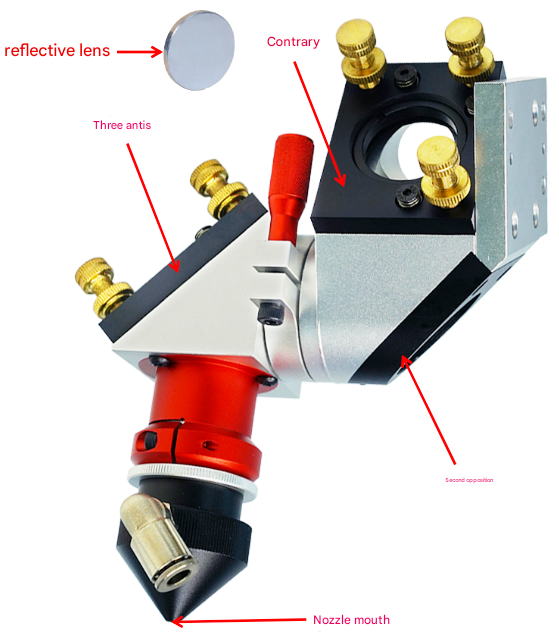

Component Description

Guide rail mounting plate: fix the body

Copper screw: adjust the light

Reflector frame: install the reflector

Thumb screw: adjust the angle of the laser head

Adjustment ring: adjust the nozzle height

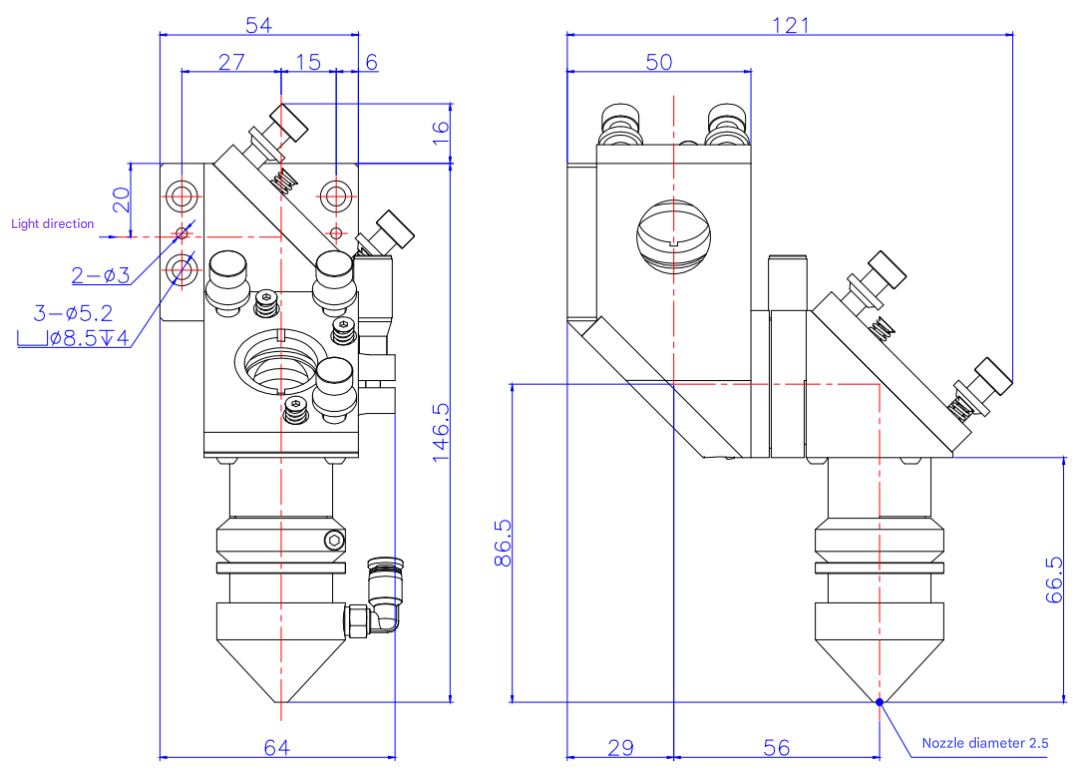

Installation Dimensions

Instructions for use and debugging

Lens installation

(1) Installation of reflective lens

Use tools to remove the lens pressing rings of the reflector frame (one reflector/two reflectors/three reflectors) in turn, put the reflective lens into the lens hole (mirror surface facing inward, back surface facing outward), press it flat, ensure it is flush, and then lock the lens pressing ring.

(2) Focusing lens installation

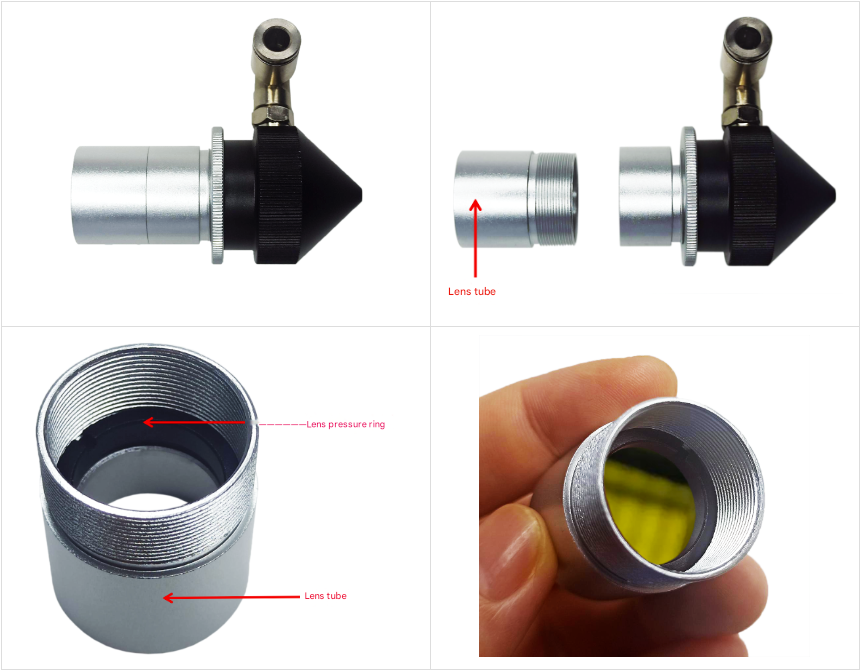

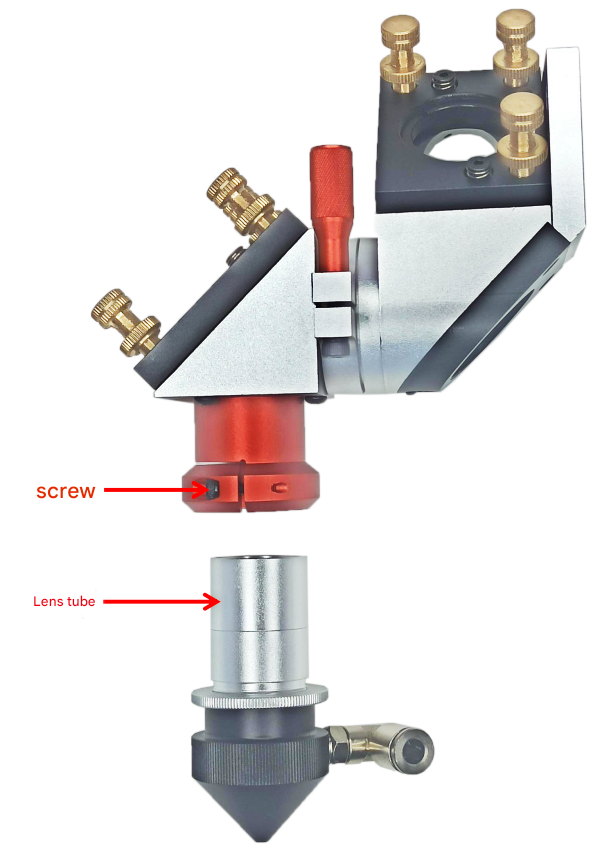

First loosen the screws and take out the lens barrel, then use tools to remove the lens pressing ring in the lens barrel, put the focusing lens into the lens hole, flatten it, ensure it is flush, and then lock the lens pressing ring to complete the lens installation.

2.Light adjustment

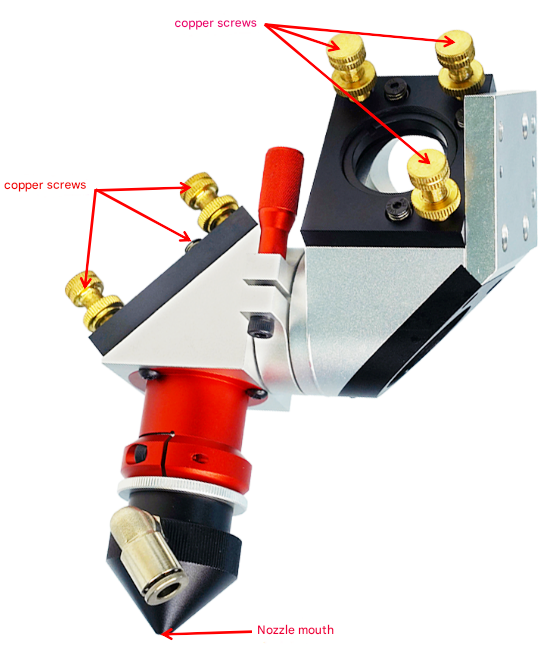

The light is adjusted by fine-tuning the copper screw. If the light beam passes through the nozzle correctly, the light adjustment is correct.

Check the lens in the laser head regularly to ensure it is clean.
Check the nozzle regularly and replace it if it is damaged.

Precautions

Non-professionals are not allowed to disassemble.
After the laser equipment is turned on, it will produce invisible light and requires professional operation. Please pay attention to safety.
It is required to connect clean and dry compressed gas. (For example, use pneumatic triplexes to filter, reduce pressure and add oil to ensure the normal operation of the pneumatic actuator and prevent malfunctions due to impurities, excessive air pressure or lack of oil.)

Order Model

Product Parameters

Order Model	Perce91005
Reflector diameter/mm	25
Focusing lens diameter/mm	20
Supported focal length/mm	50.8/63.5/101.6
Stroke/mm	35
Overall dimensions/mm	W64H162.5D121
Weight kg	0.5
