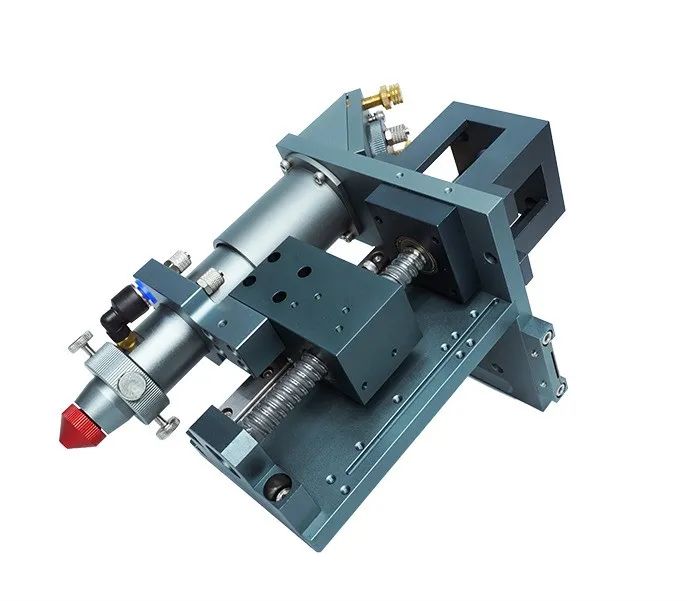

Energy-concentrating laser head, the laser beam enters the inner cavity of the cutting head through the reflector, and through the focusing lens, the energy of the laser beam is concentrated on a certain point, and the surrounding materials are melted at high temperature to form an incision to achieve the cutting effect. It can process a variety of materials, such as acrylic, density board, wood board, cloth, etc.

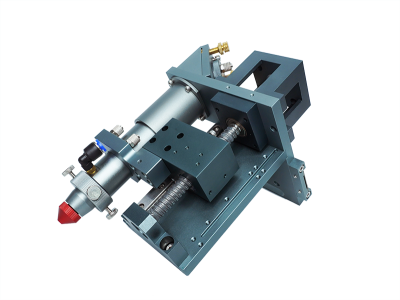

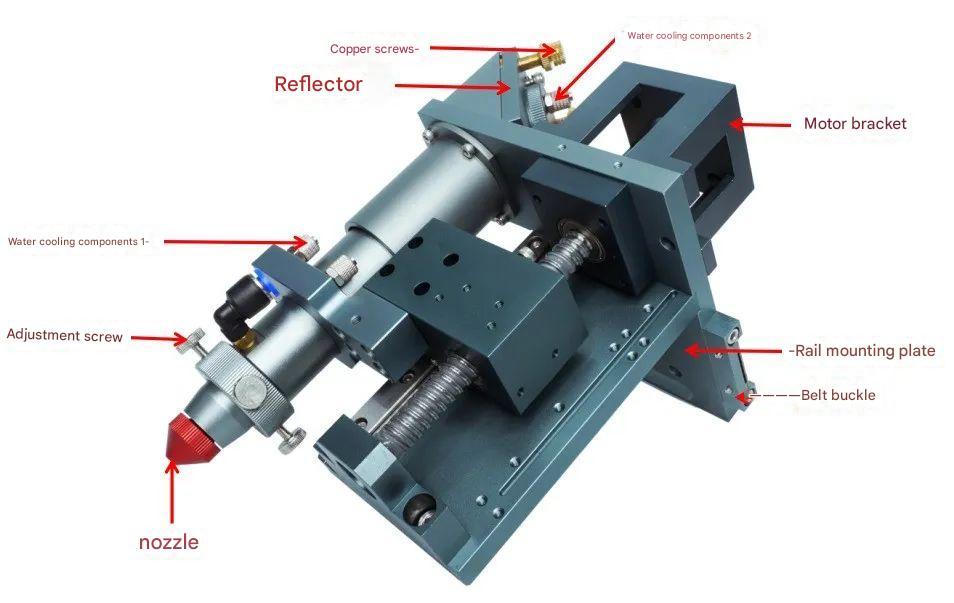

Component Description

Belt buckle: Install the belt

Guide rail mounting plate: Fix the body

Motor bracket: Install the motor

Water cooling assembly: Connect the cooling pipe

Copper screw: Adjust the light

Reflector bracket: Install the reflector

Adjust the light screw: Adjust the light

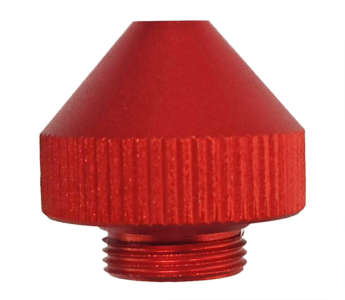

Nozzle: Beam outlet

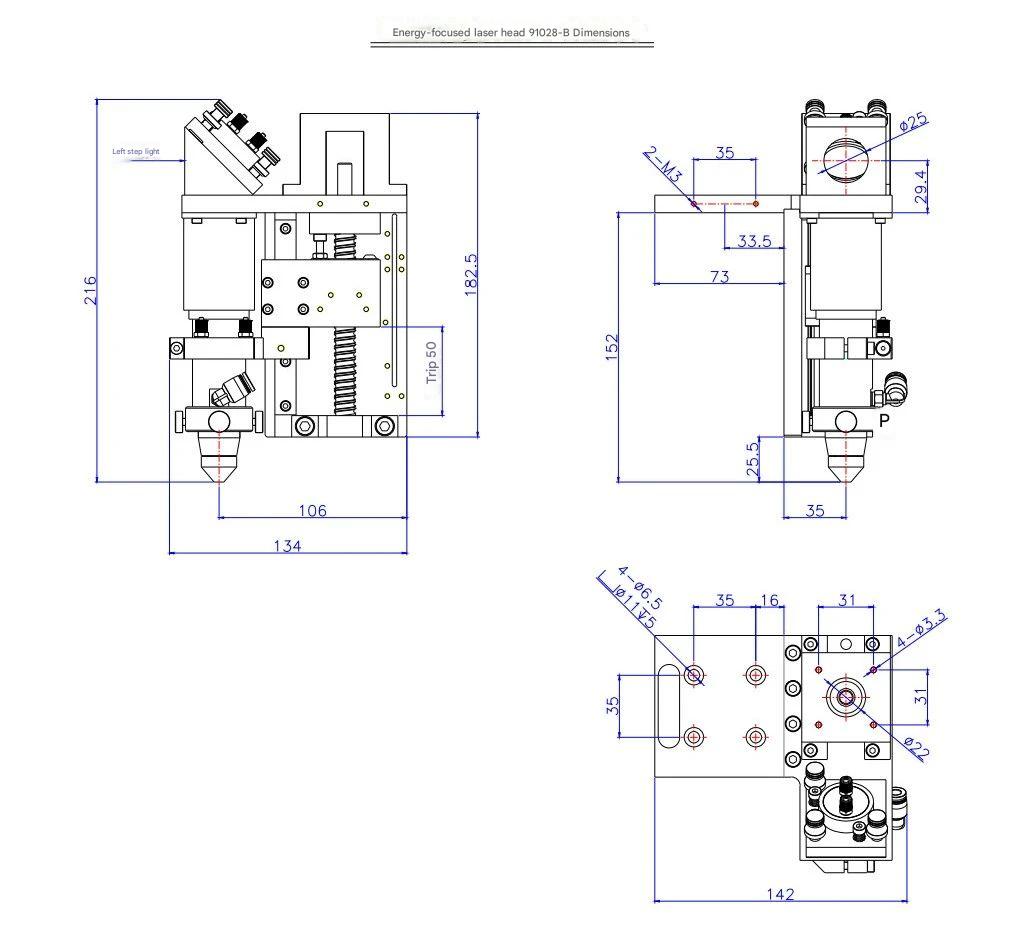

Installation dimensions

Instructions for use and debugging

Lens installation

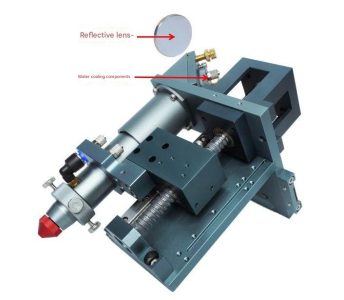

(1) Installation of reflective lens

Rotate and remove the water-cooling assembly on the reflector frame (the water-cooling assembly on the reflector frame can be replaced with a lens pressing piece), put the reflective lens into the lens hole (mirror surface facing inward, back surface facing outward), press it flat, ensure it is flush, and then rotate and lock the water-cooling assembly.

(2) Focusing lens installation、

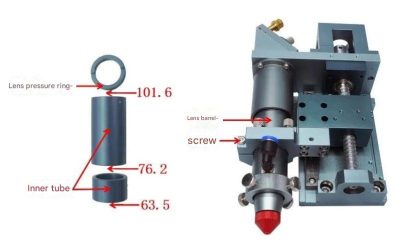

First loosen the screws and take out the lens barrel (there are lens pressing ring and inner lens barrel in the lens barrel), use the tool to rotate and take out the lens pressing ring, and then take out the inner lens barrel. You can choose different focal lengths according to your needs, supporting 63.5/76.2/101.6mm focal lengths, put the focusing lens into the lens hole, flatten it, ensure it is flush, and then lock the lens pressing ring to complete the lens installation.

Adjust the light

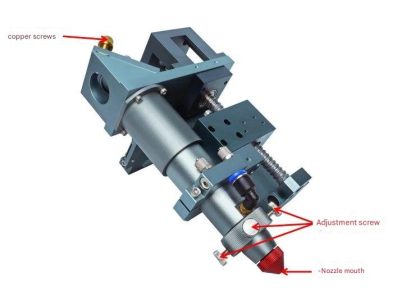

Adjust the reflector light: slightly rotate the three copper screws on the reflector frame. Adjust the focusing mirror light: slightly rotate the four adjustment screws. Adjust the reflector first, then adjust the focusing mirror. If the light beam passes through the nozzle correctly, the light adjustment is correct.

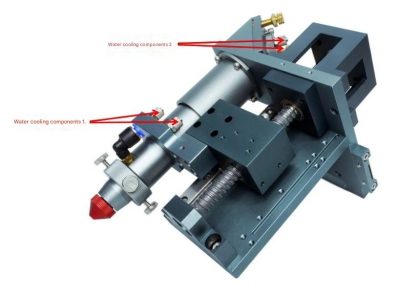

Cooling function

Laser equipment will continuously generate high temperature when working. The cooling component can be connected to the cooling pipe (the connecting medium can be water or gas) to perform circulating cooling and temperature control to protect the machine.

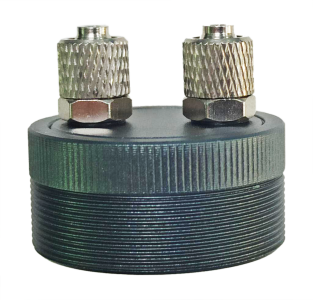

Water cooling component 1: can be connected to the cooling pipe for the high temperature generated by the reflector.

Water cooling component 2: can be connected to the cooling pipe for the high temperature generated by the focusing mirror.

Maintenance

(1) Regularly maintain the Z-axis transmission system to ensure cleanliness and lubrication

(2) Regularly check the lens in the laser head to ensure it is clean

(3) Regularly check the nozzle and replace it if it is damaged

Wiring instructions

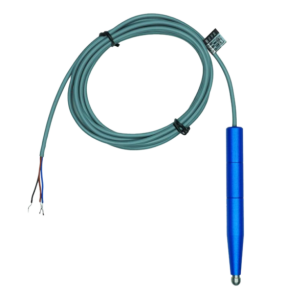

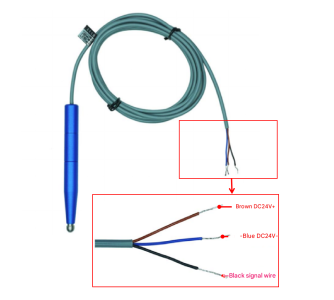

Wiring Instructions - Pen Sensor (Note: Pen Sensor needs to be purchased separately)

brown	DC24V+
blue	brownDC24V-
black	Signal line

Notes

Non-professionals are not allowed to disassemble.
You need to install the upper and lower limit switches of the Z axis by yourself. After installation, make sure that the upper and lower limit switches of the Z axis work normally and effectively before turning on the machine.
After the laser equipment is turned on, invisible light will be generated, and professional personnel are required to operate it. Please pay attention to safety.
It is required to connect clean and dry compressed gas. (For example, use a pneumatic triplex to filter, reduce pressure and refuel the gas to ensure the normal operation of the pneumatic actuator and prevent malfunctions due to impurities, excessive air pressure or lack of oil.)

Order Model

Product Parameters

Order Model	Perce91028-B
Reflector diameter/mm	30
Focusing lens diameter/mm	25
Supported focal length/mm	63.5/76.2/101.6
Stroke/mm	45
Overall dimensions/mm	W134H216D142
Weight kg	1.4
