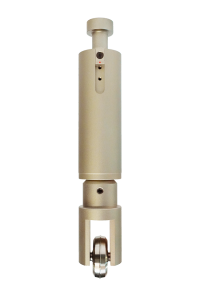

Product appearance and overview
The pressing wheel can process materials such as corrugated paper, cardboard, corrugated plastic board, etc. The pressing wheel rolls over the material through a round wheel, creating an indentation effect on the material. Different indentation effects can be achieved with wheels of different specifications.
Component Description
Ear: used to lock the knife handle
Knife handle: pressure wheel blade
Top screw: used to fix the knife holder
Knife holder: used to clamp the pressure wheel
Pressing wheel: used to roll the material

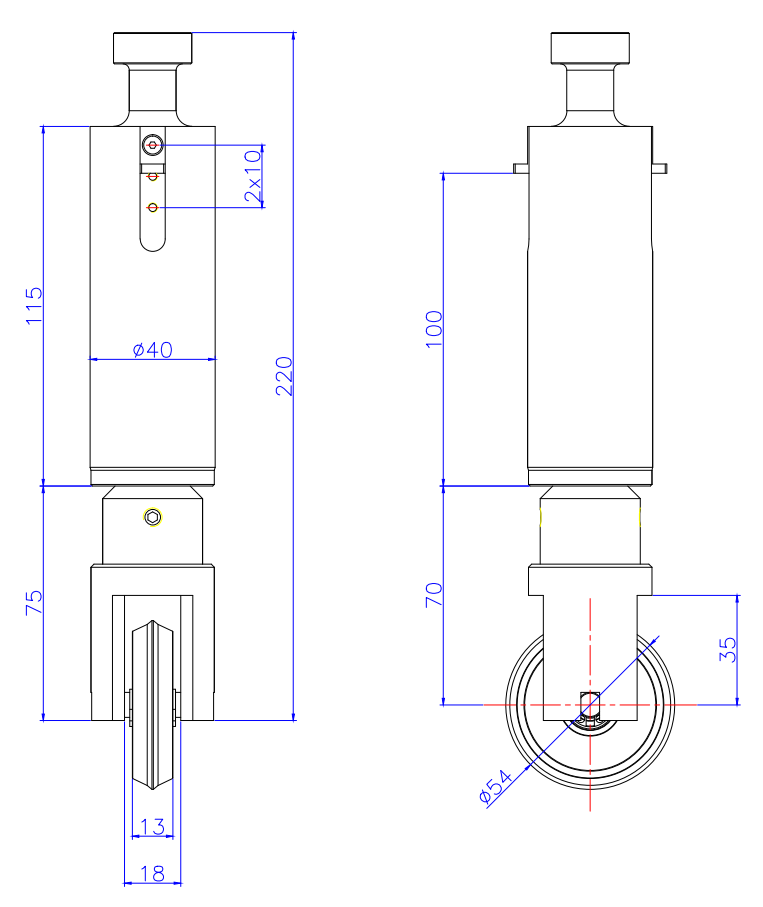

Installation Dimensions

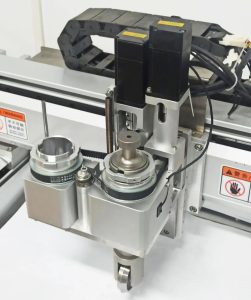

Installation Diagram
Instructions for use and debugging
（1） Installation and removal of the pressure wheel
Align the two planes of the pressure wheel shaft parallel to the tool holder installation slot, and press the pressure wheel shaft into the tool holder installation slot with a little force. When you hear a click, it is installed in place (check whether the pressure wheel can rotate smoothly and whether the pressure wheel shaft is loose).
When disassembling, just apply a little force in the horizontal direction to remove the pressure wheel.
Precautions
Non-professionals should not disassemble it at will.
Product Parameters
| Order Model |
Perce 91107 |
| Overall dimensions/mm |
W49*H220*D40 |
| Weight kg |
0.7 |

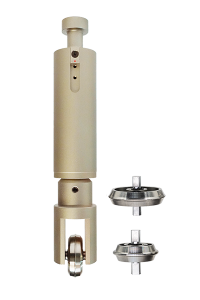

Delivery standard configuration
Perce 91107 Press Roller
Optional accessories
Perce 95114-010 Press Roller (Standard)
Perce 95114-011 Press Roller (Standard)

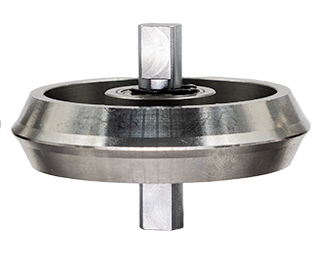

Perce 95114-009 Press Roller (Standard)

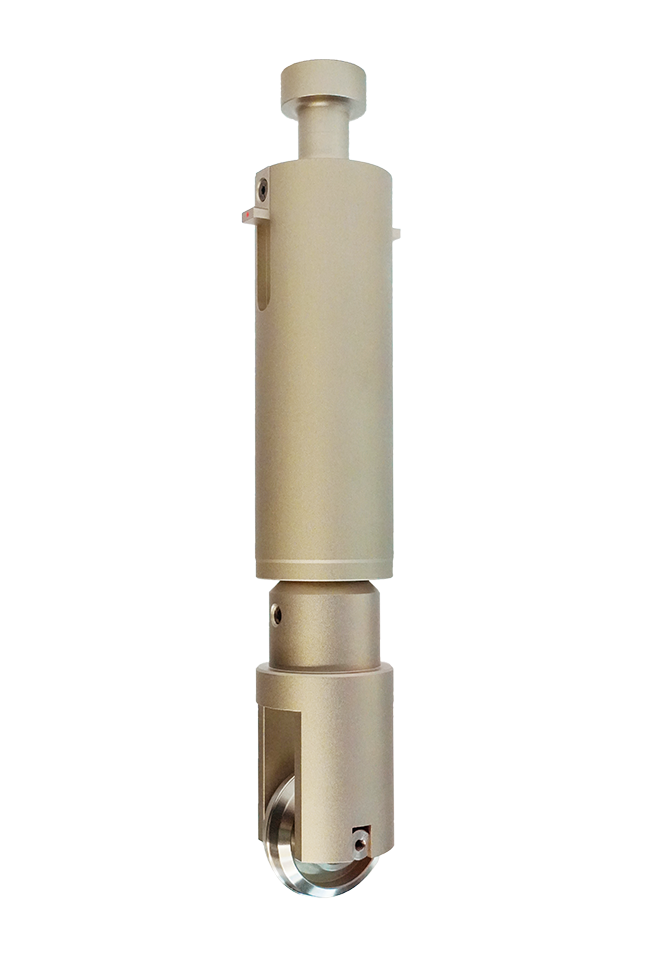

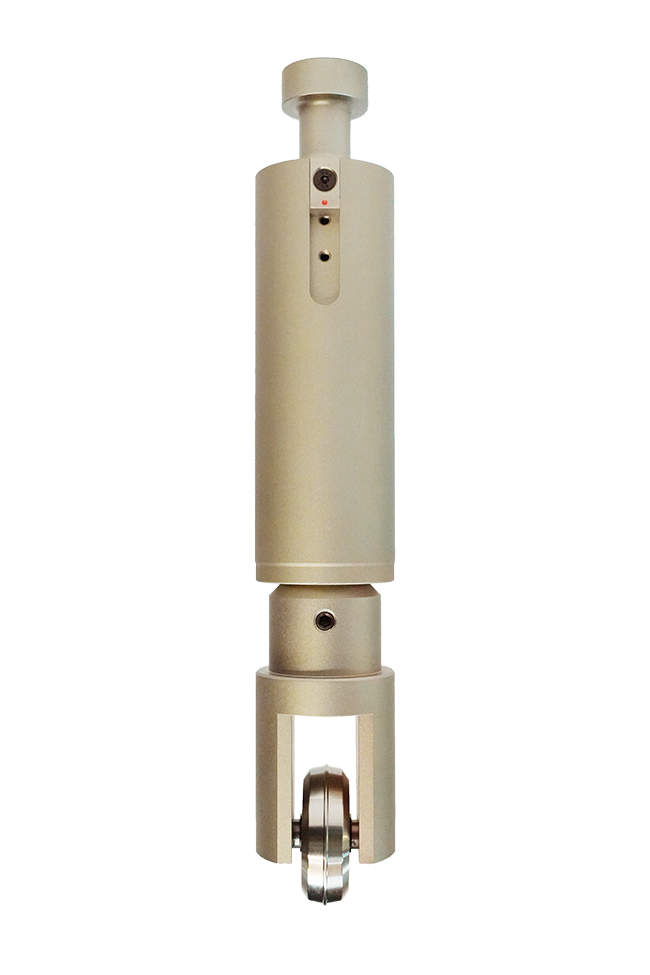

Multi-faceted appearance
