Overview

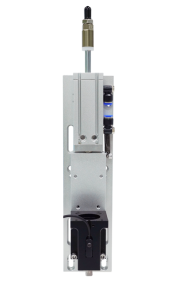

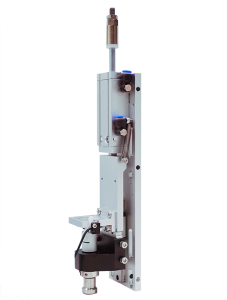

Perce 91109 V punch, composed of Perce 95091 servo punch holders holding V-punches and slotted punches, can punch leather, imitation leather, PU, PVC, EVA, SBR, cloth, cardboard, kraft paper and other materials.

V-punches and slotted punches are driven by motors to rotate the spindle at high speed, and cylinders drive the spindle to move up and down quickly, so that the punches can punch and cut the materials.

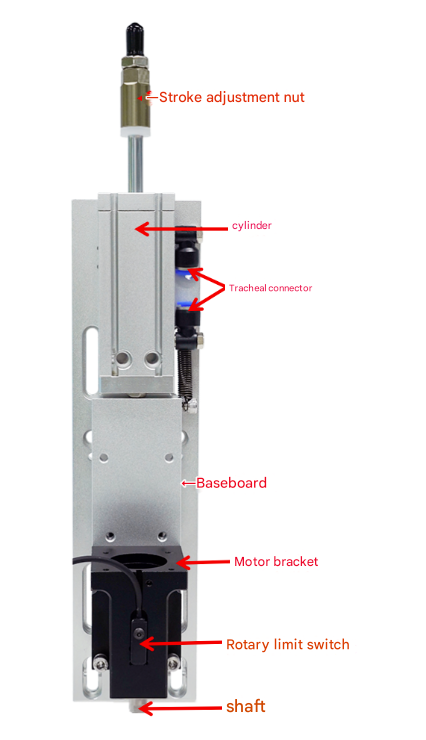

Component Description

Stroke adjustment nut: cylinder stroke fine-tuning device

Trachea joint: solenoid valve air circuit access

Motor bracket: motor mounting position

Base plate: used to install and fix the punch body

Rotation limit switch: punching angle control element

Spindle: connecting punch Punch: clamping punch

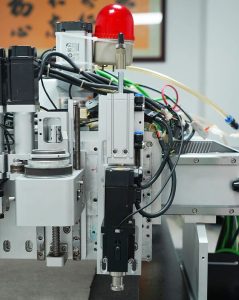

Installation Diagram

Installation Dimensions

Instructions for use and debugging

（1）Installation and debugging

Use 4 M5 screws to fix Perce 91109V punch and Perce 91119 slotted punch on the equipment mounting plate. The installation height should be no higher than 30 (+1~+5) mm from the work surface. The motor should be correctly wired and the cylinder should be connected to the air pipe. Depending on the punching effect, the stroke adjustment nut can be slightly adjusted to achieve the best punching effect.

（2）Punch installation

Align the punch guide groove with the positioning pin and connect them, and finally tighten the screws to complete the punch installation.

（3）Oiling maintenance and cleaning

Lubricating the guide rails at regular intervals can reduce wear on the guide rails and make them work better.

Wiring Instructions

Black	signal line
blue	DC24V-
Brown	DC24V+

Precautions

1. Before powering on, make sure the wiring is correct

2. The incoming air pressure is not higher than 0.6MPa

3. Clean and dry compressed gas must be connected. (For example, use a pneumatic triplex to filter, reduce pressure and add oil to the gas to ensure the normal operation of the pneumatic actuator and prevent malfunctions due to impurities, excessive air pressure or lack of oil.)
