Product appearance and overview

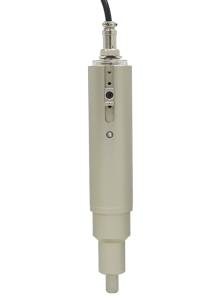

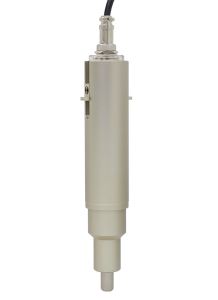

Table surface collector. The flatness data of the table surface is collected through sensors, so that the system can automatically compensate for the relative drop of the tool during processing.

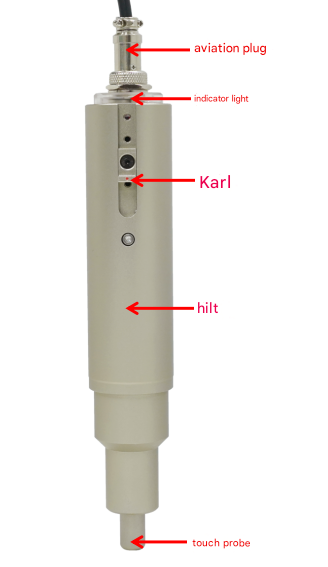

Component Description
Aviation plug: provides power
Card ear: used to lock the knife handle
Knife handle: table collector blade
Touch head: touch table sensor head

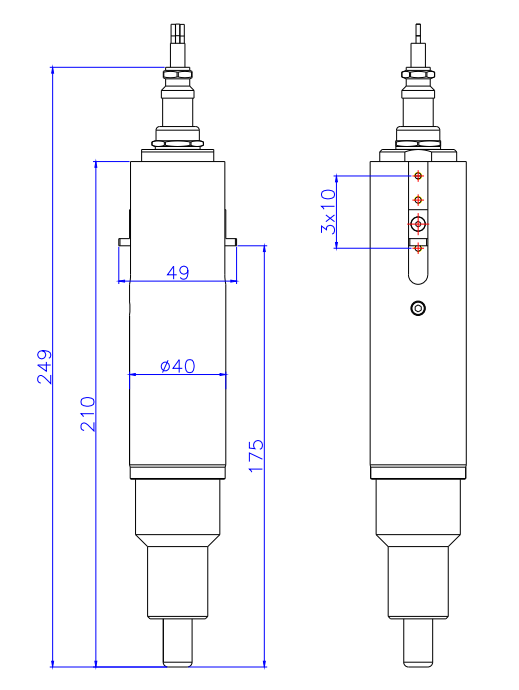

Installation Dimensions

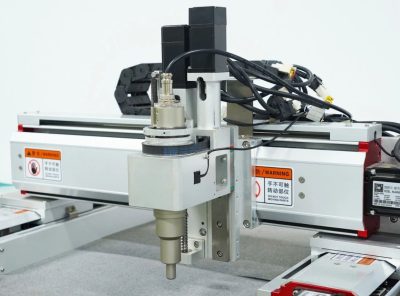

Installation Diagram
Wiring Instructions
（1）Wiring 1
|
Line 1 |
Signal line |
|
Line 2 |
DC24V+ |
|
Yellow-green line |
DC24V- |

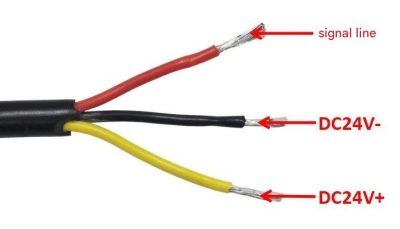

Wiring 2
Red Line | Signal line |
Black Line | DC24V- |
Yellow line | DC24V+ |
Precautions
Before powering on, make sure the wiring is correct.
| Order Model |
Perce 91112 |
| Overall dimensions/mm |
W49*H245*D40 |
| Weight kg | 0.5 |
Shipping Configuration
Perce 91112 Tabletop Collector

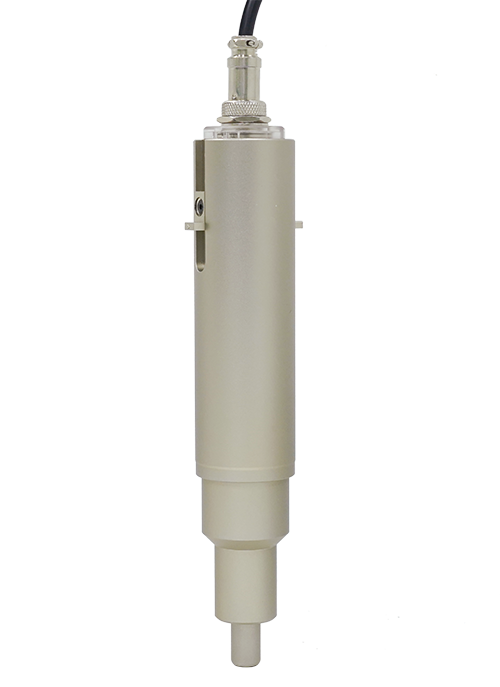

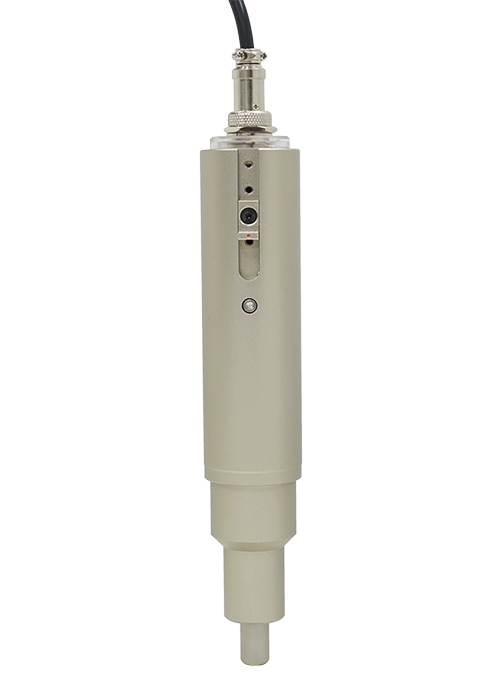

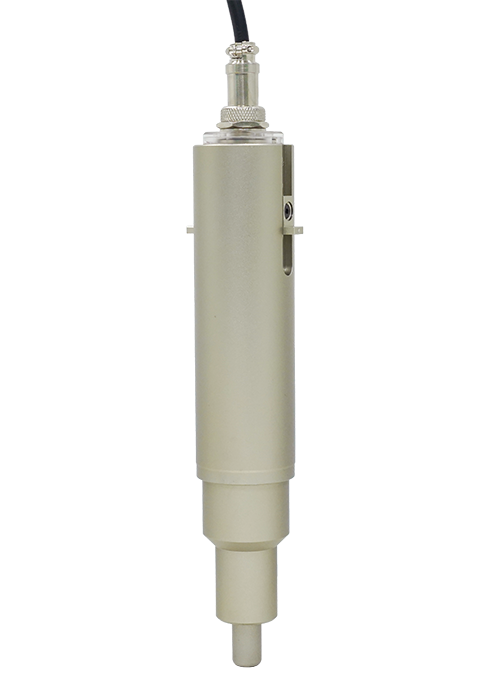

Multi-faceted appearance
