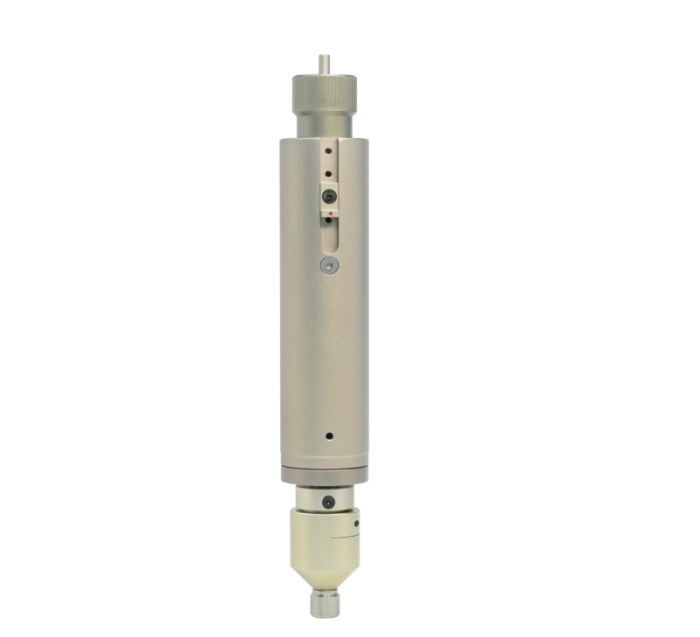

Product appearance and overview

Kiss-Cut Tool can process self-adhesive stickers, car stickers, reflective stickers, magnetic stickers, PP paper, PP adhesive, rubber cloth, imitation leather, cardboard, soft glass and other materials.
Half-cut knife can achieve material cutting through the rapid movement of the tool. It allows cutting materials at the fastest processing speed, with high cost performance and low maintenance cost.

Component Description

Pressure lever: Press down to push out the blade.

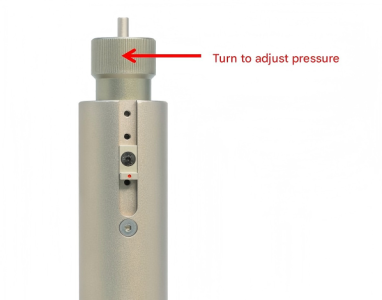

Adjustment handle: Adjust pressure.

Lock: Used to lock the handle.

Handle: Half-cut blade.

Locking screw: Fix the adjustment cylinder.

Adjustment cylinder: Adjust the depth of the knife.

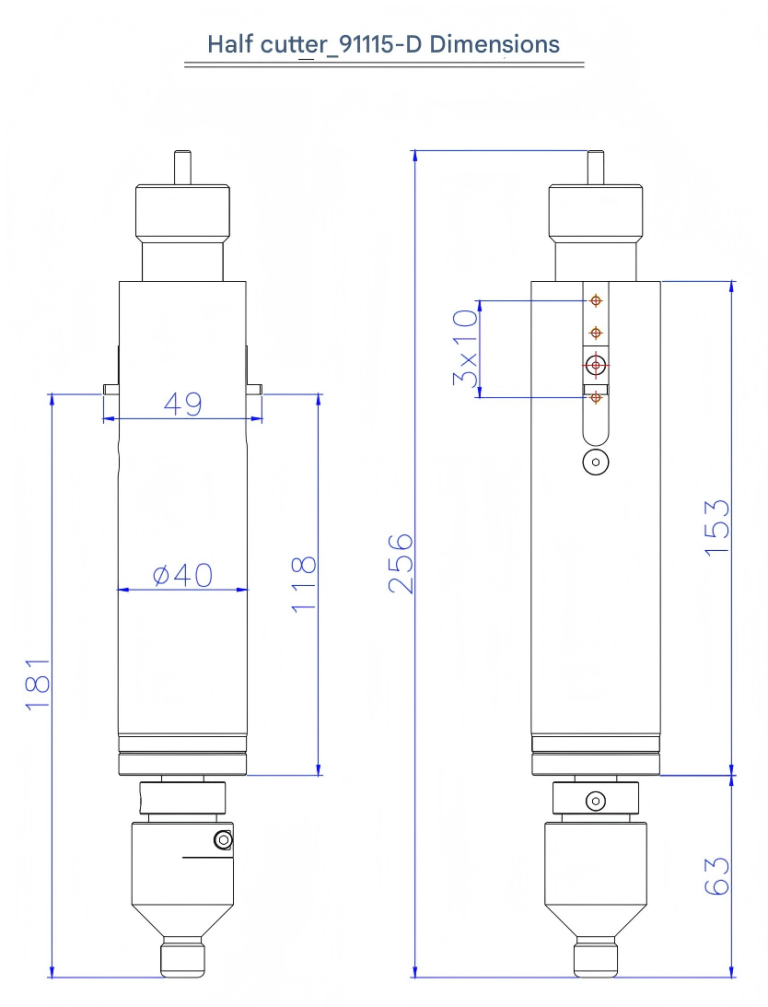

Installation Dimensions

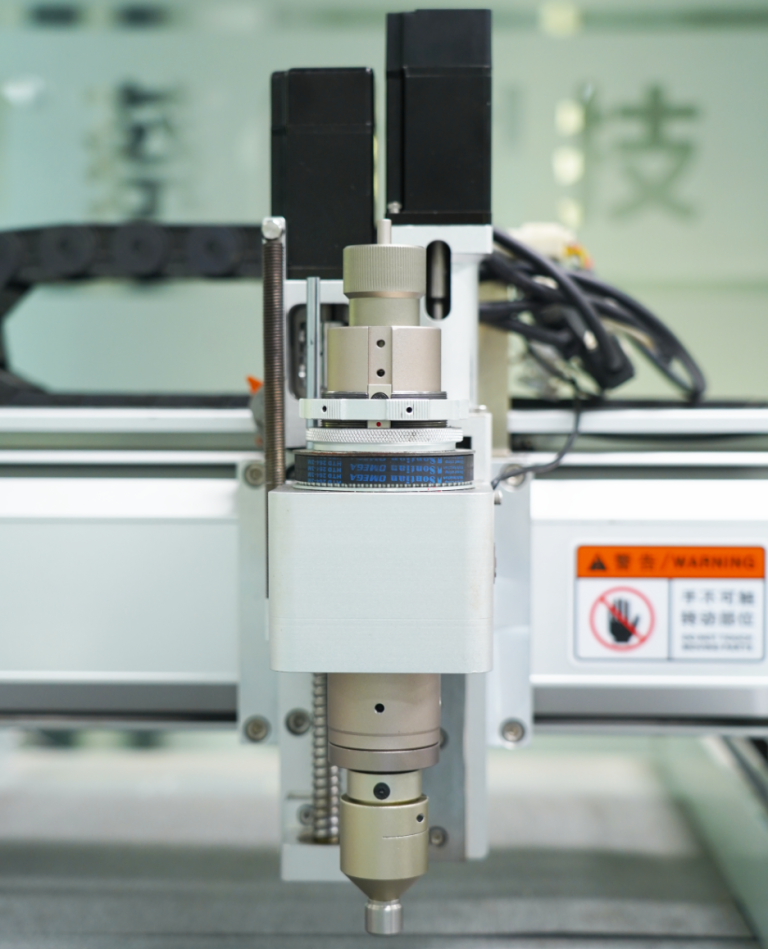

Installation Diagram

Instructions for use and debugging

1. Half-cut blade - installation and removal of the blade

Align the half-cut blade with the bottom installation port. The blade head has a magnetic suction and will automatically absorb when pushed into place.

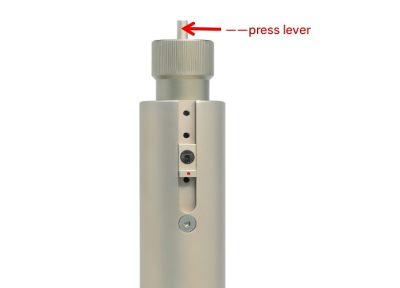

Press the top lever to release the blade.

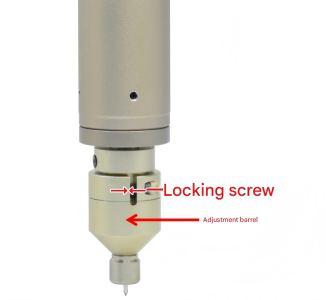

2.Blade depth adjustment

Loosen the locking screw and rotate the adjustment tube to adjust the blade extension length. Tighten the locking screw after adjusting to the appropriate height.
