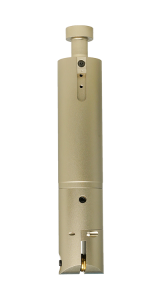

Passive circular knife I can process various textiles such as sheep wool, UV cloth, carbon fiber, banner, flag cloth, blackout cloth, etc. Passive circular knife I can be matched with different blades to realize the processing of different materials.

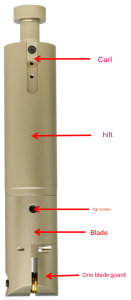

Component Description
Ear: used to lock the handle
Handle: round blade
Top screw: fixed blade
Body: clamping blade
Protective cover: blade head part, clamping blade

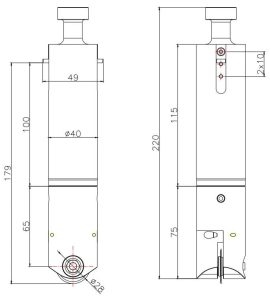

Installation dimensions

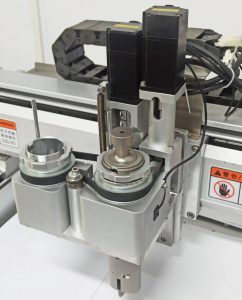

Installation diagram
.
Instructions for use and debugging
Blade installation

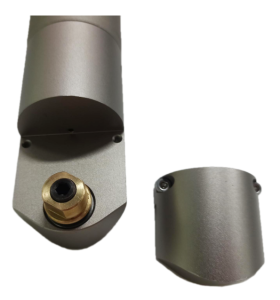

Unscrew and remove the blade cover.

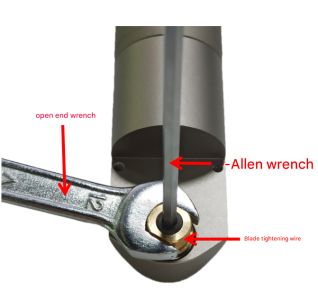

Use an open-end wrench to hold the blade tightening wire, and then use an Allen wrench to unscrew the blade tightening wire (clockwise to unscrew, counterclockwise to tighten). Clamp the blade between the cutter head and the blade tightening wire, and then tighten the blade to fix it.

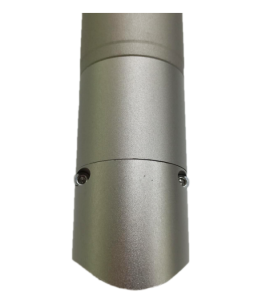

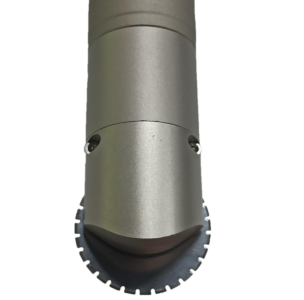

Finally, lock the blade cover to complete the blade installation.
Notes
- Do not use too much force when tightening the blade
- Non-professionals are not allowed to disassemble the blade head
- Pay attention to safety when installing the blade
