Perce 91135 Sword seat 80

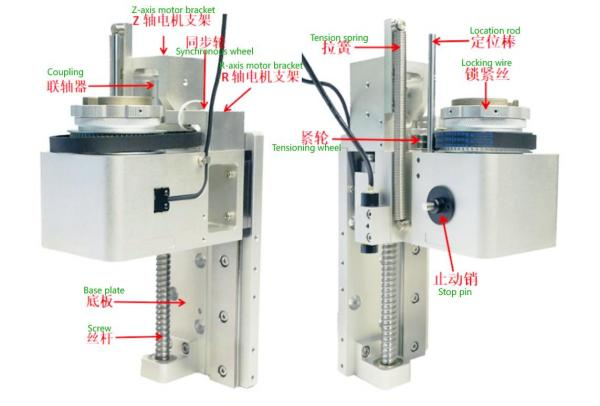

Component Description

Tension spring: prevents the tool from sliding down naturally along the Z axis when power is off
Location rod: used to clamp the tool ear toprevent the upper part of the tool from rotatingwith the knife barrel
Coupling: used to connect the Z-axis motorand the lead screw
Locking wire: fix the tool
Stop pin: when installing the tool andtightening the locking wire, press the stop pinto prevent the knife barrel from rotating
Base plate: used to fix the tool holder
Tensioning wheel: used to adjust the tension ofthe synchronous belt

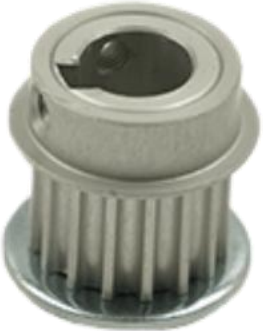

Synchronous wheel: installed on the R-axismmotor

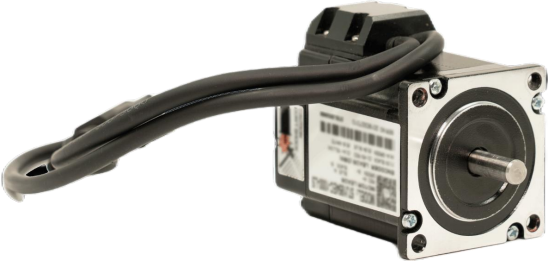

R-axis motor bracket: control the installationposition of the tool rotation motor
Z-axis motor bracket: control the installationposition of the tool lifting motor

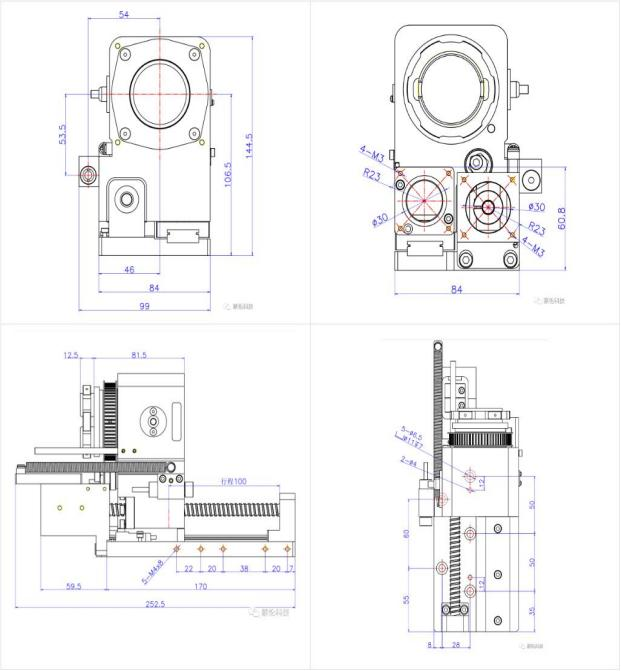

Installation Dimensions

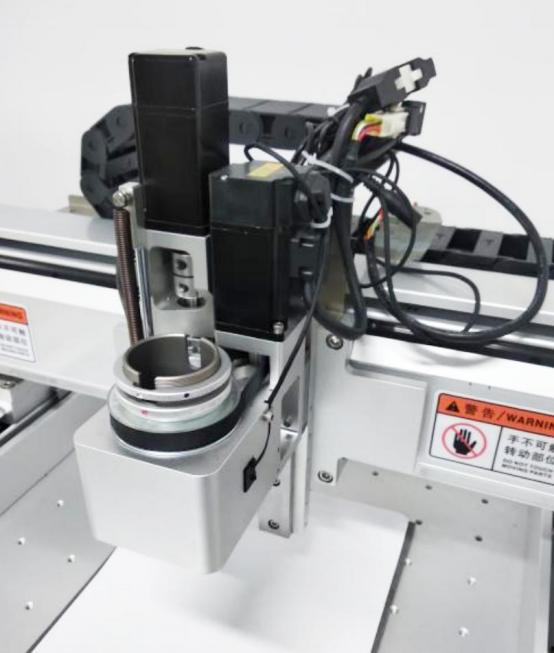

Installation Diagram

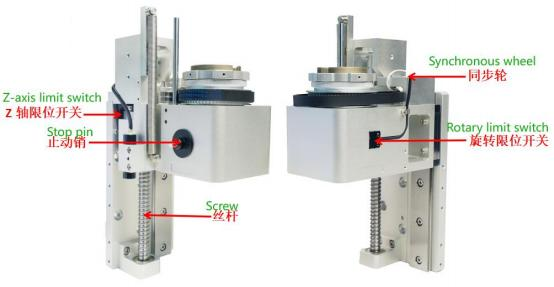

Instructions for use and debugging

Lead and gear ratio: lead of screw rod 4mm,gear ratio of synchronous wheel 1:4 limit switch
Output: default output NPN NO
Stop pin operation: press the stop pin and rotate the knife barrel (synchronous wheel) until the stop pin is inserted into the hole；at this time, the stop pin is stuck in the knife barrel, and the locking screw can be loosened by hand or wrench

Wiring Instructions

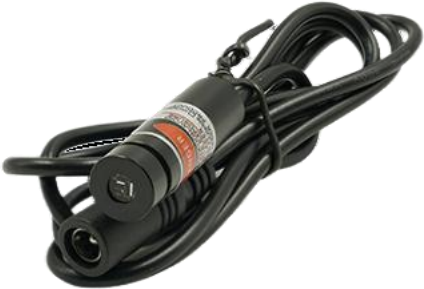

Red light crosshair	Red：DC5V+ Black：DC5V-

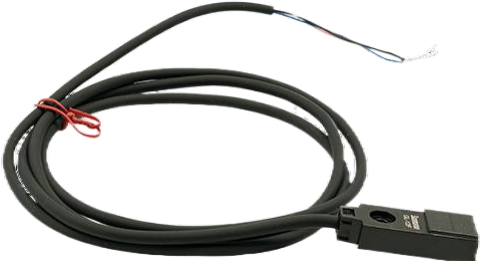

Z-axis limit switch	brown：DC24V+ blue：DC24V- black：Signal line

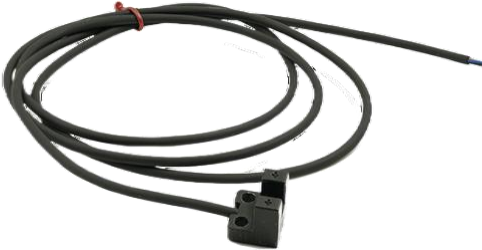

R-axis limit switch	brown：DC24V+ blue：DC24V- Signal line see label (black or white)

Precautions

1. Before powering on, make sure the wiring is correct
2.Use shielded cables to avoid interference
3. Confirm the tightness of the coupling
4. The red light on the knife holder defaults toDC5V power supply, and the limit switchdefaults to DC24V power supply
