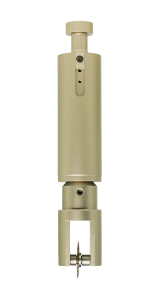

Passive circular knife II can process various textiles such as sheep wool, UV cloth, carbon fiber, banners, flag cloth, blackout cloth, etc.

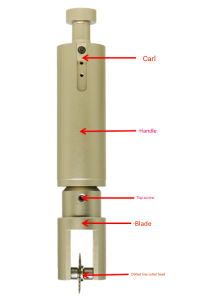

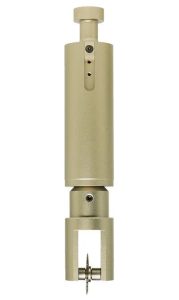

Component Description

Ear: used to lock the handle

Handle: round blade

Top screw: fixed blade

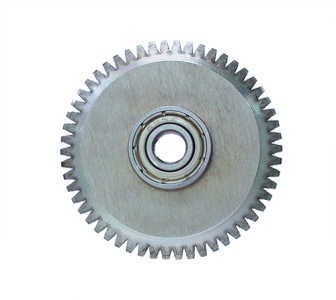

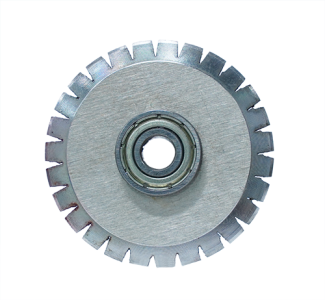

Brace: clamping dotted line blade

Dotted line blade: clamping blade

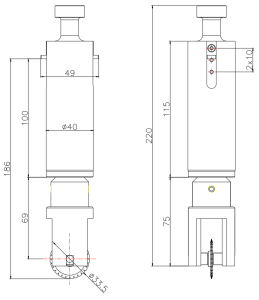

Installation dimensions

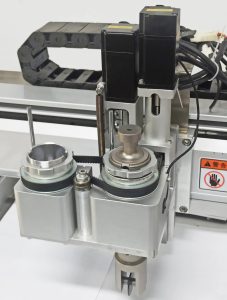

Installation diagram

Instructions for use and debugging

Blade installation

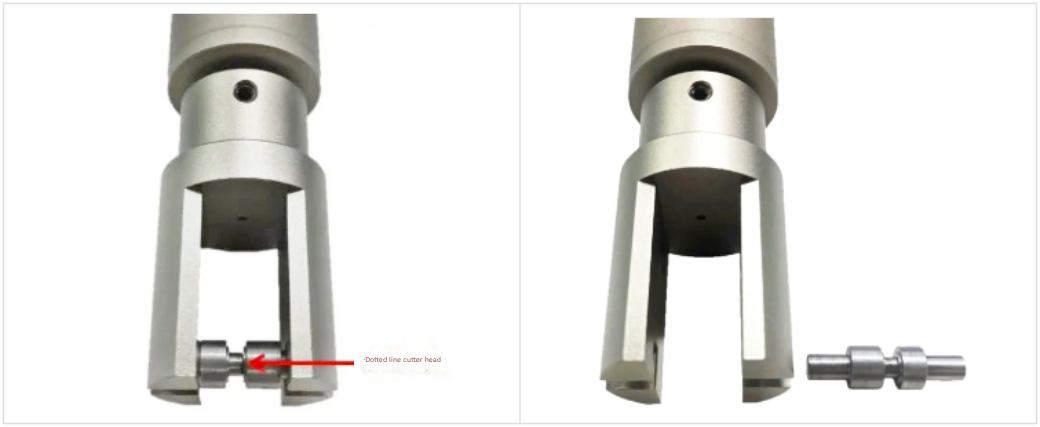

Remove the dotted blade by pushing it down with a little force.

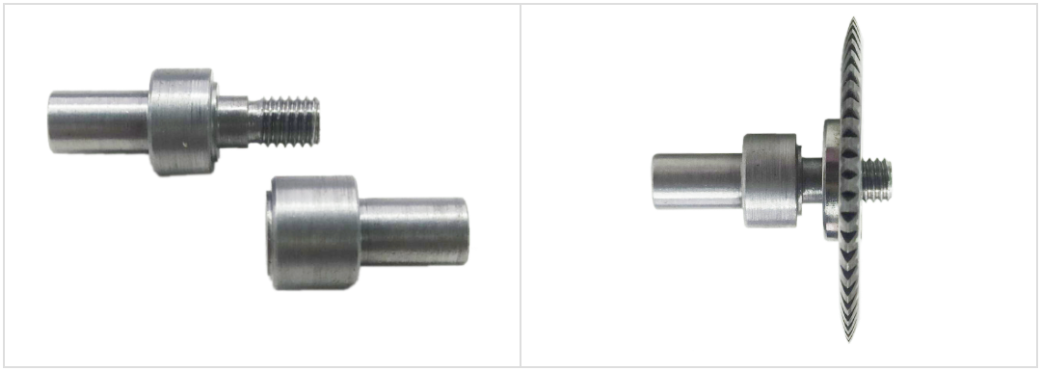

Unscrew the dotted line cutter head and clamp the dotted line blade II in the middle (pay attention to the blade clamping surface when clamping), ensuring that the blade is located in the center of the dotted line cutter head after installation.

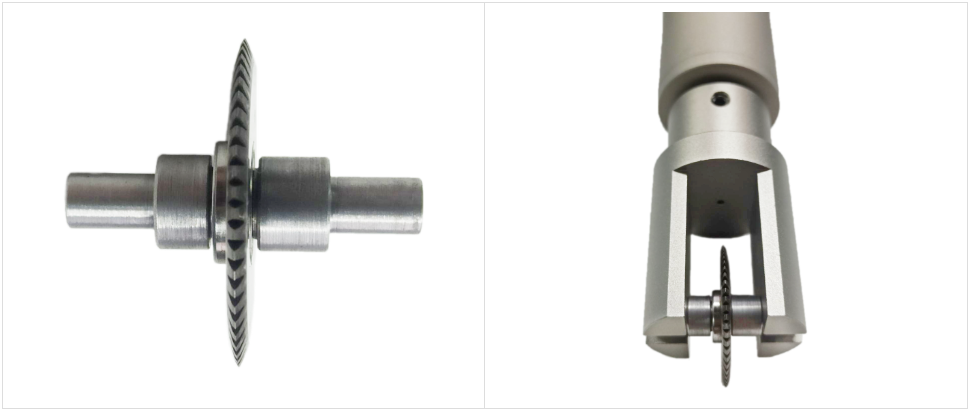

Tighten the dotted-line cutter head and put the dotted-line cutter head with the blade clamped back to the bottom of the cutter head. There is a magnetic suction at the bottom of the cutter head, which will automatically adsorb after being placed in the right position.
