Fixed brush, the system controls the brush tool to move, so as to mark, write, draw graphics, etc. on the material.
Can mark most materials such as cardboard, cloth, leather, etc.

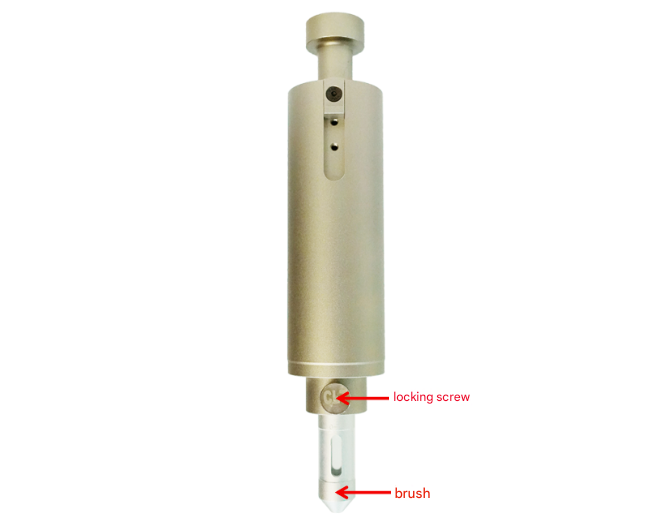

Component description
Carabiner: fix the handle
Handle: brush blade
Locking screw: tighten the brush
Brush: draw the pattern track
Installation Dimensions

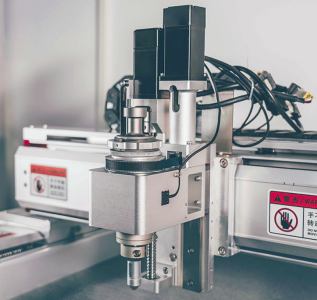

Installation Diagram
Use debugging and instructions
（1）Install the brush
Loosen the M4 screw, install the brush, adjust the brush to the appropriate position, and tighten the M4 screw.

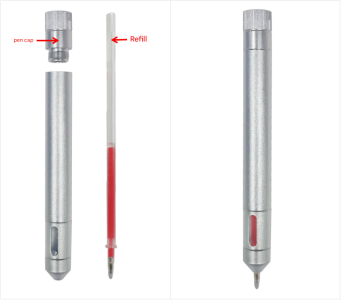

（2） Replace the refill
Twist out the cap of the pen holder, put in the refill, and finally tighten the cap to complete the refill replacement.
Precautions
Non-professionals are not allowed to dismantle the internal structure
Product Parameters
| Order Model | Perce 91138 |
| Drive mode | Lead screw |
| stroke | Depends on tool holder stroke |
| Overall dimensions/mm | W48*H200*D40 |
| Weight kg | 0.4 |
Shipping Configuration
Perce 91138 Fixed Brush
Perce 95028 Refill
Optional accessories

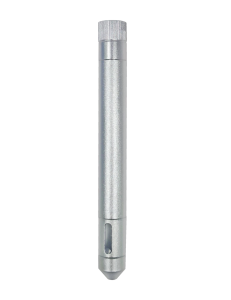

Perce 95027 Pen Holder
Perce 95028 Refill
