Overview

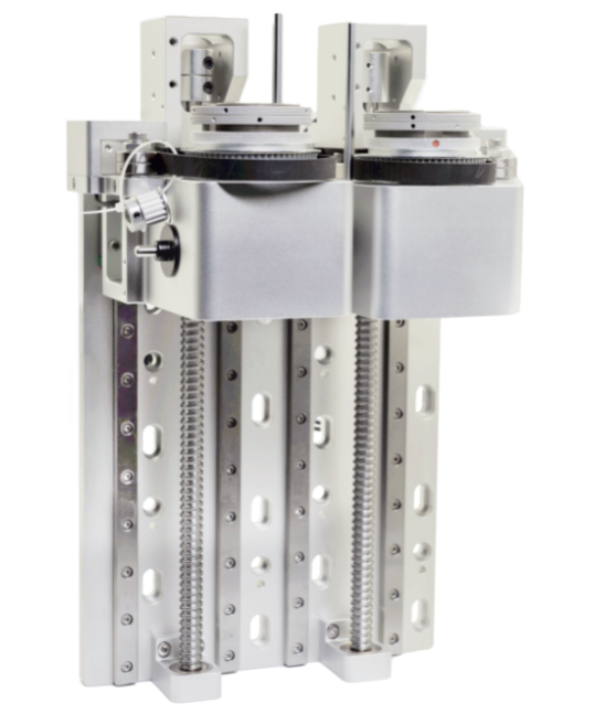

PERCE's key product, the extended double tool holder 100, can be equipped with two types of tools, such as vibrating knives, circular knives, pneumatic knives, drag knives, bevel cutters, milling cutters, pressure wheels, half cutters, table collectors, etc. The extended double tool holder 100 uses a screw rod to achieve Z-axis lifting and lowering, and a synchronous wheel drive to achieve tool rotation.

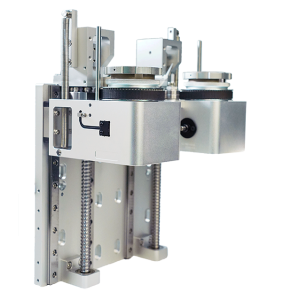

extended double tool holder 100-147
extended double tool holder 100-207

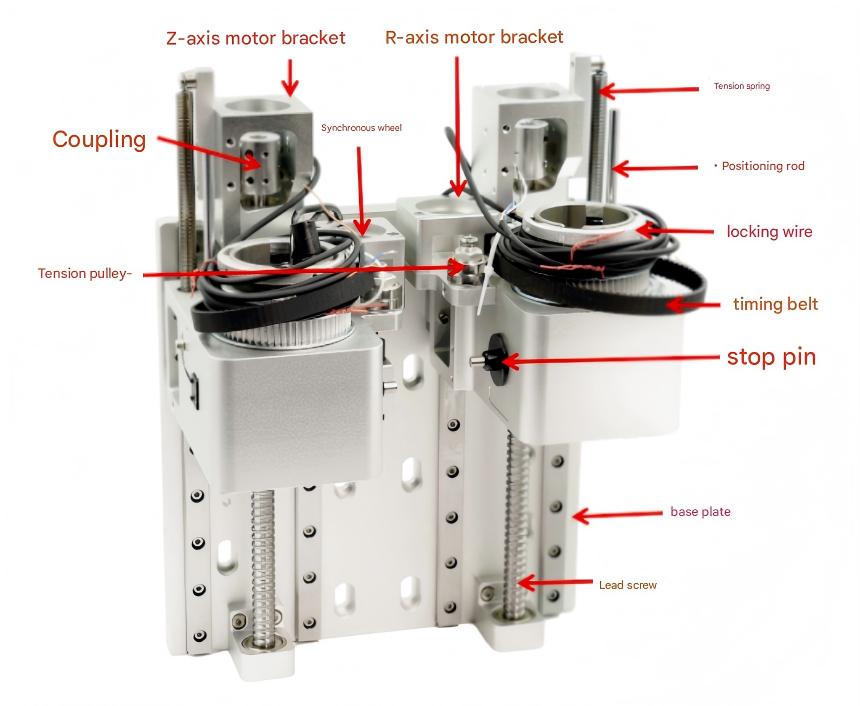

Component Description
extended double tool holder 100-147
extended double tool holder 100-207
Tension spring: prevents the tool from sliding down naturally along the Z axis when power is off.
Location rod: used to clamp the tool ear to prevent the upper part of the tool from rotating with the tool barrel.
Coupling: used to connect the Z-axis motor and the screw.
Locking wire: fix the tool.
Stop pin: when installing the tool and tightening the locking wire, press the stop pin to prevent the tool barrel from rotating.
Base plate: used to fix the tool holder.
Tensioning wheel: used to adjust the tension of the synchronous belt.
Synchronous wheel: installed on the R-axis motor.
R-axis motor bracket: control the installation position of the tool rotation motor.
Z-axis motor bracket: control the installation position of the tool lifting motor.
Synchronous belt: connects the large and small synchronous wheels.

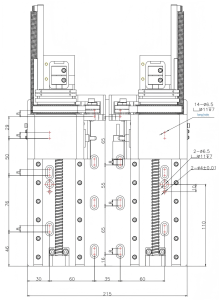

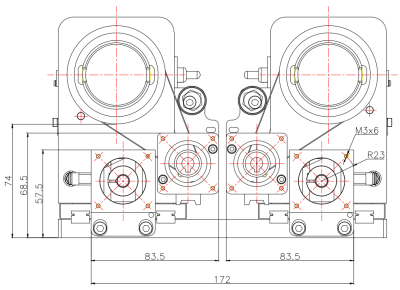

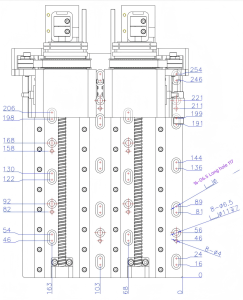

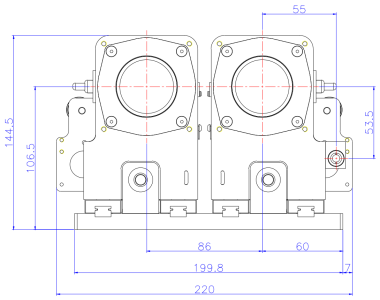

Installation Dimensions

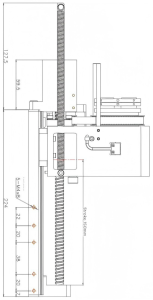

extended double tool holder 100-147

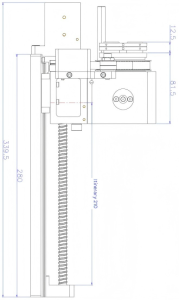

extended double tool holder 100-207

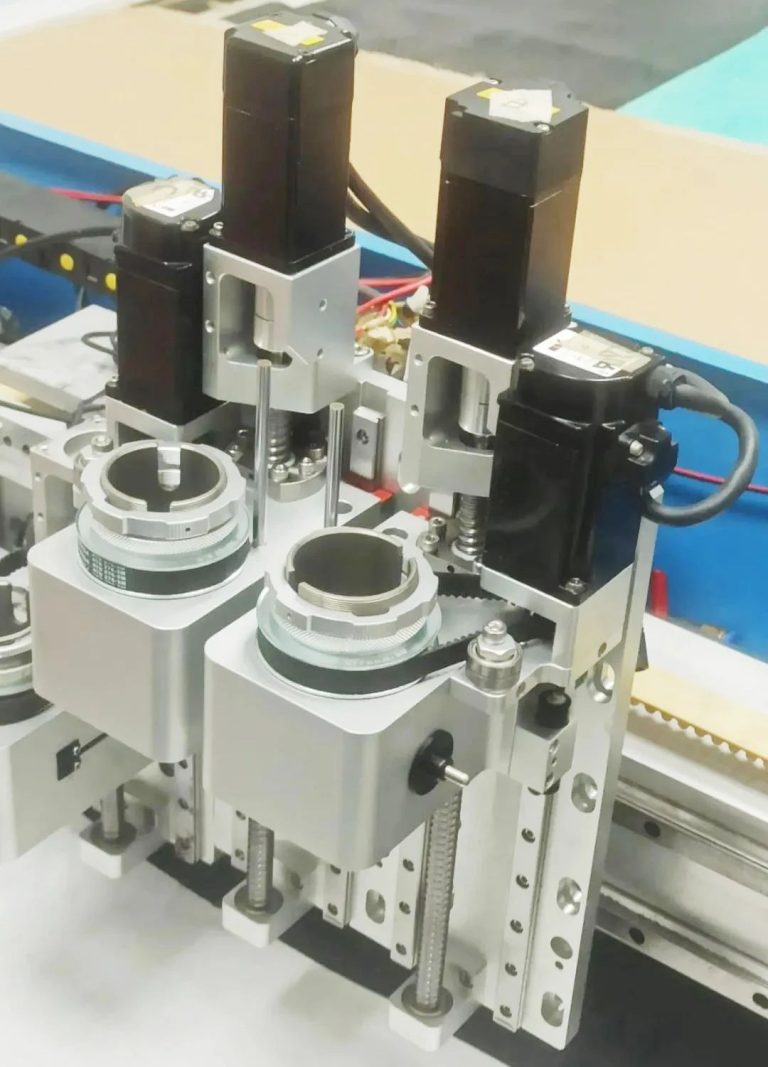

Installation Diagram

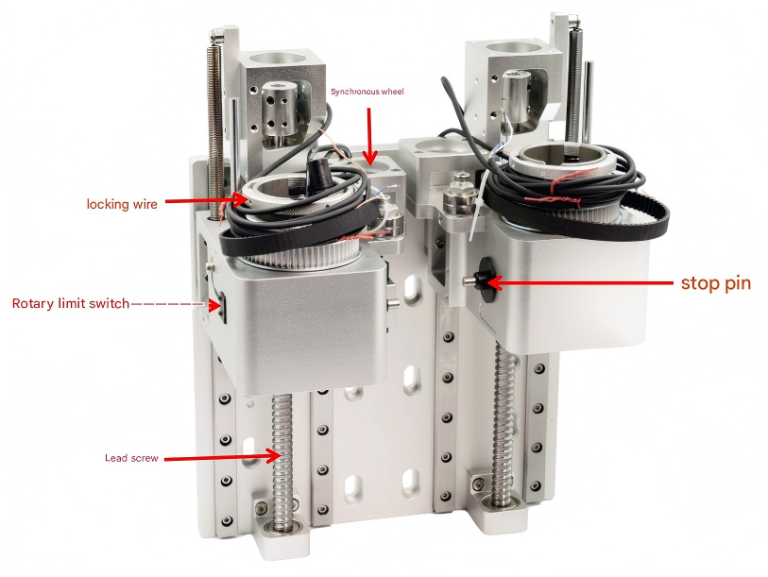

Instructions for use and debugging
Lead and gear ratio: lead of screw rod 4mm, gear ratio of synchronous wheel 1:4.
Limit switch output: default output NPN NO.
Stop pin operation: press the stop pin and rotate the knife barrel (synchronous wheel) until the stop pin is inserted into the hole; at this time, the stop pin is stuck in the knife barrel, and the locking wire can be loosened by hand or wrench.

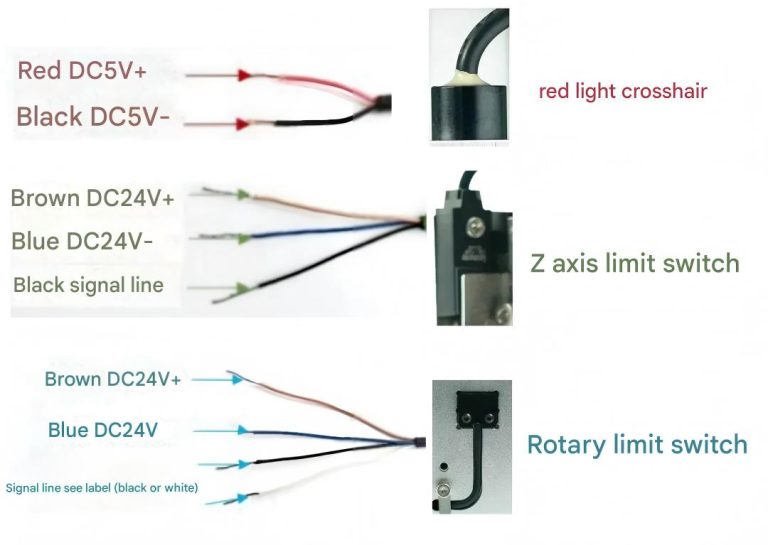

Wiring Instructions
The default power supply for the knife holder red light is DC5V, and the default power supply for the limit switch is DC24V
| Red light crosshair | Red：DC5V+ Black：DC5V- |
| Z-axis limit switch | brown：DC24V+ blue：DC24V- black：Signal line |
| R-axis limit switch | brown：DC24V+ blue：DC24V- Signal line see label (black or white) |
Precautions
- Before powering on, make sure the wiring is correct.
- Use shielded cables to avoid interference.
- Make sure the coupling is tight.
Order Model
Product Parameters
| Order Model | Perce91143 |
| Number of tools that can be installed | 2 |
| journey | 147/207/277 |
| Dimensions | -A Stroke 147 W215/H351.5/D144.5 -B Stroke 207 W220/H339.5/D144.5 |
| Weight | Different sizes have different weights |
Shipping Configuration
Extended double blade holder 100
-A stroke 147mm
Extended double blade holder 100
-B stroke 207mm
Optional accessories

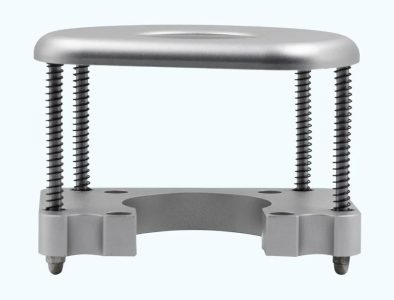

Knife seat pressure plate

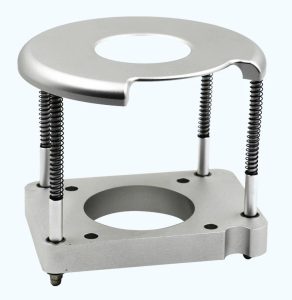

Heightened knife seat pressure plate

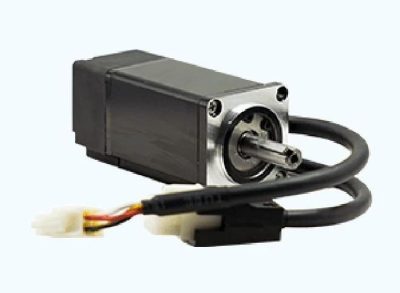

Servo Motor
Optional spare parts
Couplings
Small synchronous wheel of knife seat
Knife holder belt
Rotary limit switch
Z-axis limit switch
Red light indicator
