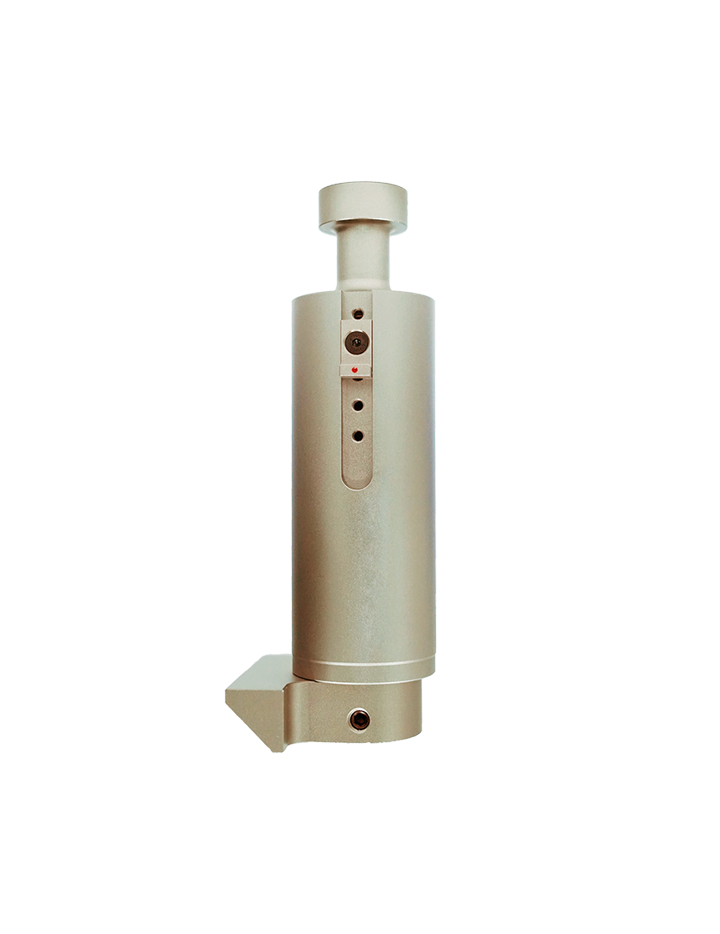

Product appearance and overview
The equilateral bevel cutter can cut V-shaped grooves and bevels, and process soft glass, PVC, honeycomb board, KT board, vertical corrugated paper, gray cardboard and other materials.

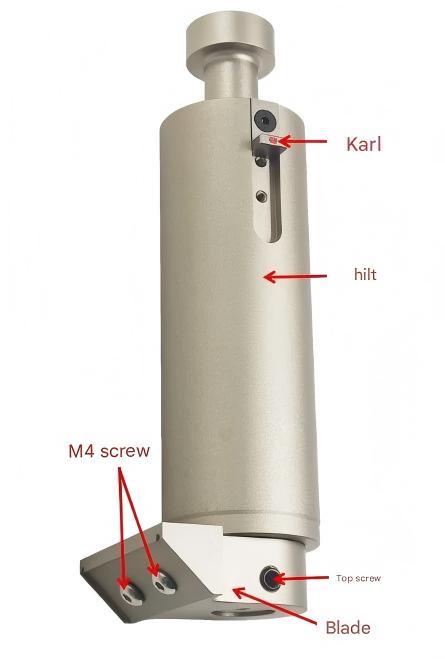

Component Description
Ear: used to lock the handle.
Handle: bevel blade.
Top screw: used to fix the blade.
Body: connects the handle and the blade.
M4 screw: clamps the blade.

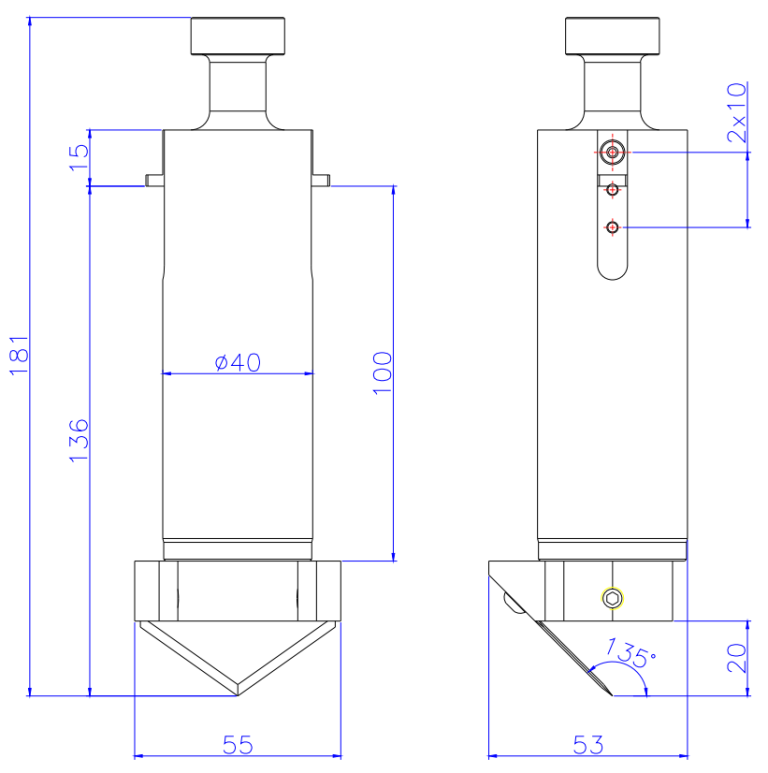

Installation Dimensions

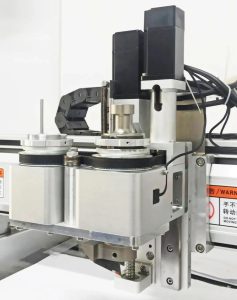

Installation Diagram

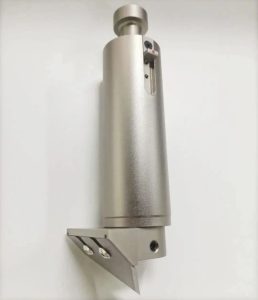

Instructions for use and debugging
Installation and removal of blades
- Blade installation

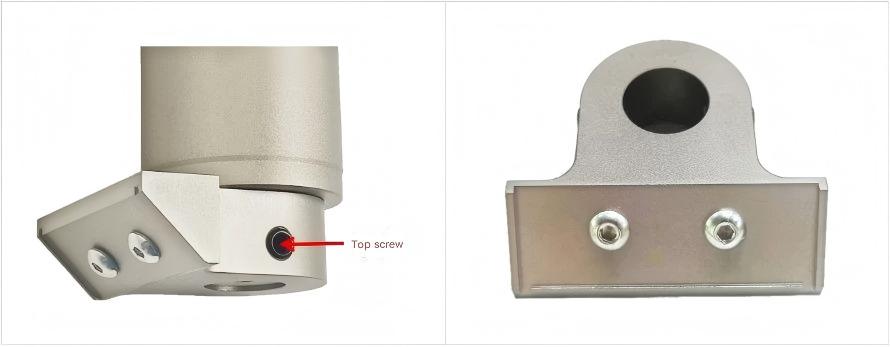

Unscrew the cup head screw and remove the knife holder.
Loosen the top screws (two in total, front and back) and remove the blade.

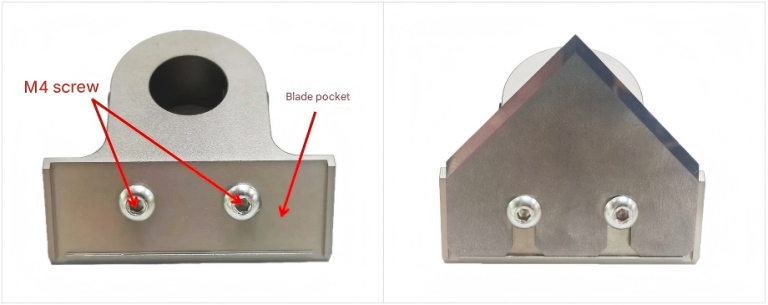

Loosen the M4 screw and put the blade into the blade slot. The blade extends to 27mm. Pay attention to the direction of the blade during installation and tighten it after inserting the blade (pay attention to the gap between the blades when tightening. If the gap is too large, the blade will easily fall out).
Finally, connect the cutter head with the blade installed to the cutter handle and tighten the top screw to complete the installation.
-Blade removal
Loosen the two M4 screws and the blade can be removed after it is loose.
Precautions
1. Non-professionals are not allowed to disassemble the blade.
2. The blade is sharp, please be careful when installing.
Order Model
Product Parameters
| Order Model | Perce91149 |
| Cutting thickness/mm | 20 |
| Overall dimensions/mm | W49*H243*D40 |
| Weight | 0.5 |
Shipping Configuration

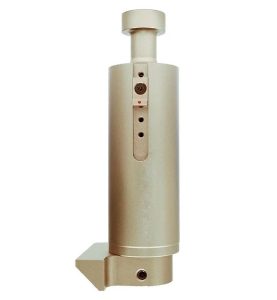

Bevel cutter Ⅰ
Options and accessories

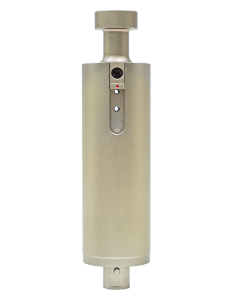

Bevel Toolholder

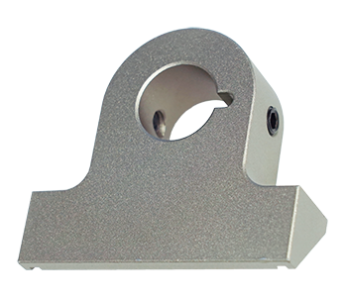

Equal Edge Bevel Bit

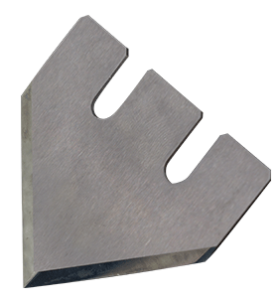

Equal Edge Blade
