Overview
PERCE's important product - the cylinder double tool holder can clamp two tools at the same time. A variety of tools are available, such as vibrating knives, circular knives, pneumatic knives, drag knives, bevel cutters, milling cutters, pressure wheels, half cutters, table collectors, etc.
The cylinder double tool holder uses a double-rod cylinder to achieve Z-axis lifting and lowering, and a synchronous belt drive to achieve tool rotation.

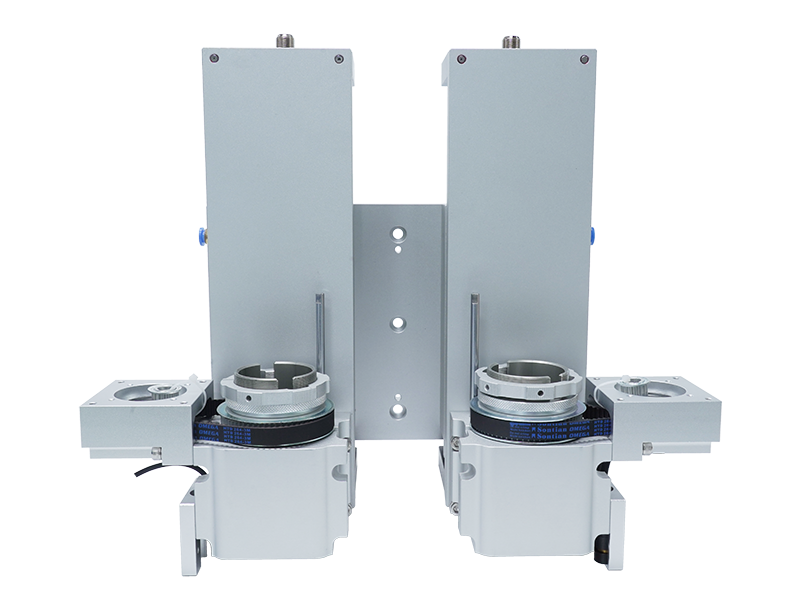

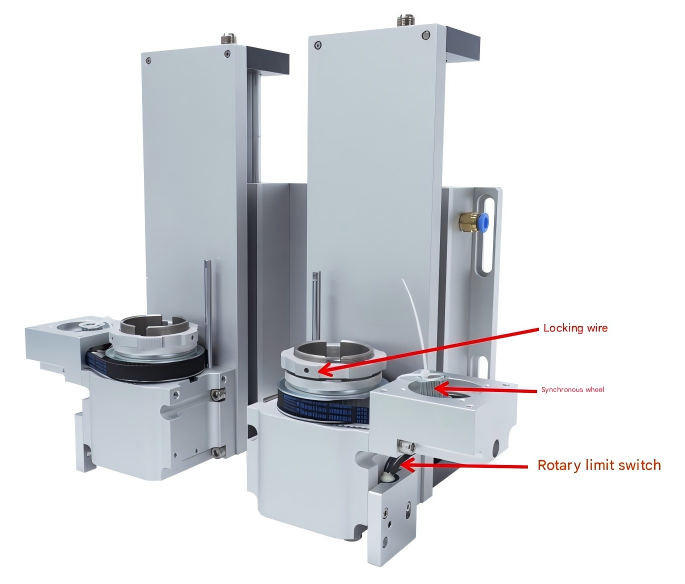

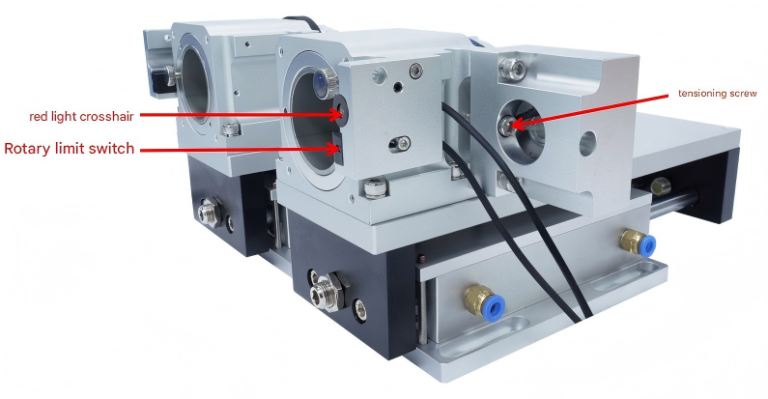

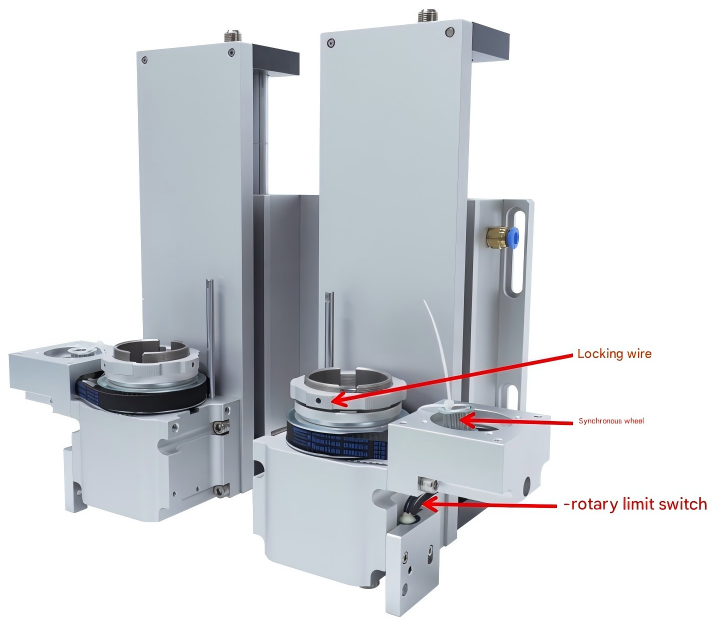

Component Description
Positioning rod：Used to clamp the tool ears to prevent the upper part of the tool from rotating with the knife barrel.
Locking wire：Fixed tool.
Base Plate：For fixing the knife holder.
Tension screw：Used to adjust the tension of the synchronous belt.
Motor bracket：Control tool rotation motor installation position.
Rotary limit switch：Control tool rotation angle.
Synchronous wheel：Installed on the R-axis motor.
Timing belt：Connecting large and small synchronous wheels.

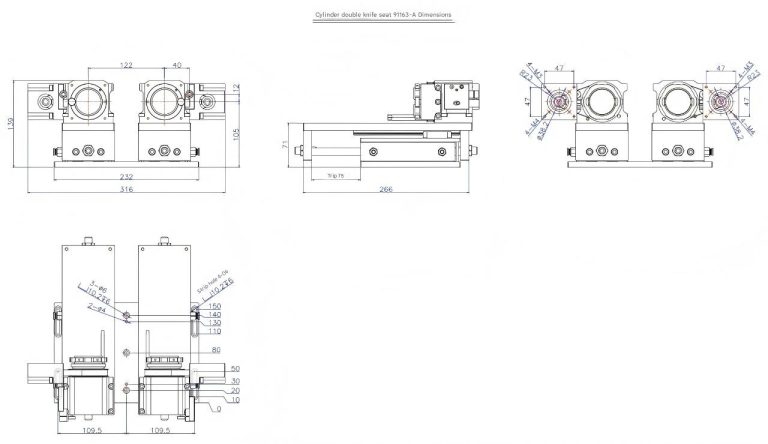

Installation Dimensions

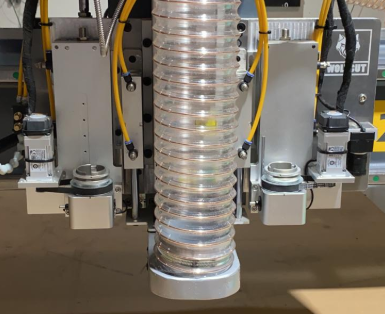

Installation Diagram
Instructions for use and debugging
Gear ratio: Synchronous gear gear ratio 1:4.
Limit switch output: Default output NPN NO.

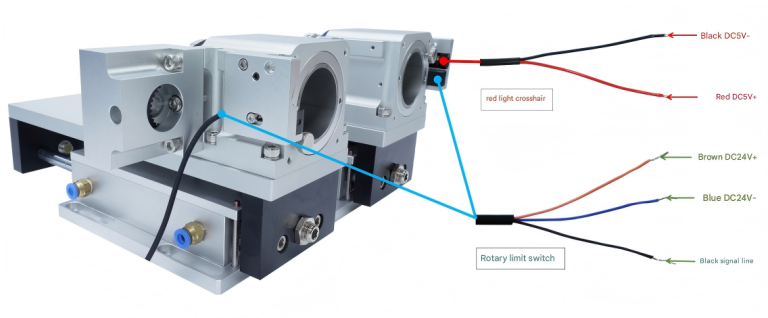

Wiring Instructions
The default power supply for the knife holder red light is DC5V, and the default power supply for the limit switch is DC24V
| Rotary limit switch | brown：DC24V+ blue：DC24V- black：Signal line |
| Red light crosshair | black：DC5V- red：DC5V+ |
Precautions
- Before powering on, confirm that the wiring is correct.
- Clean and dry compressed gas must be connected. (For example, use a pneumatic triplex to filter, reduce pressure and add oil to the gas to ensure the normal operation of the pneumatic actuator and prevent malfunctions due to impurities, excessive air pressure or lack of oil.)
- Use shielded cables to avoid interference.
- Confirm the tightness of the coupling.
Order Model
Product Parameters
| Order Model | Perce91163 |
| Number of tools that can be installed | 2 |
| journey | 75 |
| Dimensions | W334/H266/D139 |
| Weight | 7.9 |
Shipping Configuration
*PERCE91163-A1 is the widened version, which can be equipped with a pressure plate; CLT91163-A is the regular version (the distance between the knife barrel is closer), which cannot be equipped with a pressure plate
Optional accessories

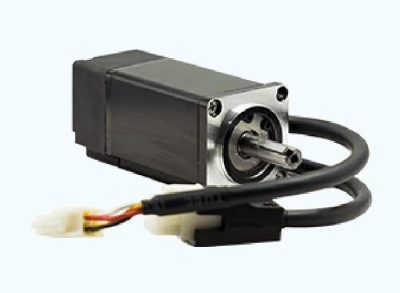

Servo Motor

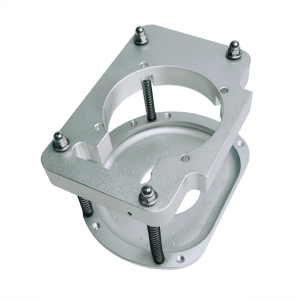

Flying pressure plate
Optional spare parts
Red light indicator
Limit switches
Small synchronous wheel of knife seat

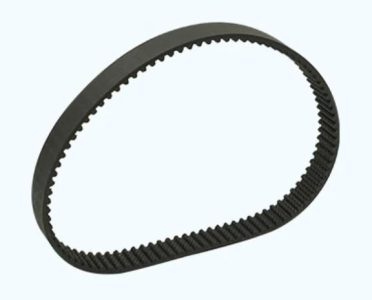

Knife holder belt
