Overview

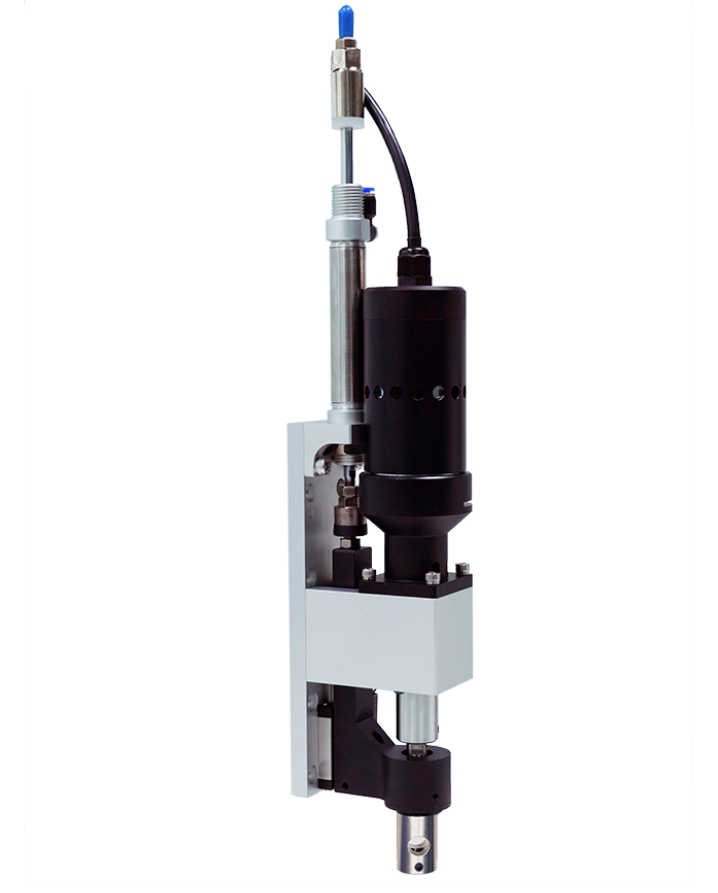

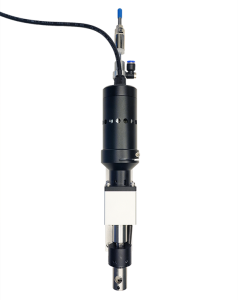

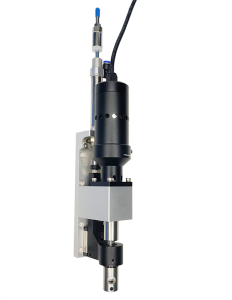

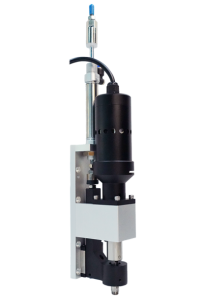

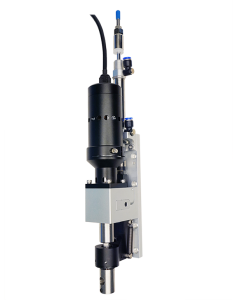

Perce 91180 non-following circular punch and Perce 91183 non-following needle punch are composed of Perce 95095 non-following DC punch holders that clamp circular punches and needle punches respectively. They can punch leather, imitation leather, PU, PVC, EVA, SBR, cloth, cardboard, kraft paper and other materials.

Non-following circular punch and non-following needle punch are driven by the motor to rotate the spindle at high speed, and the cylinder drives the spindle to move up and down quickly, so that the punch can realize the rotary cutting of the material.

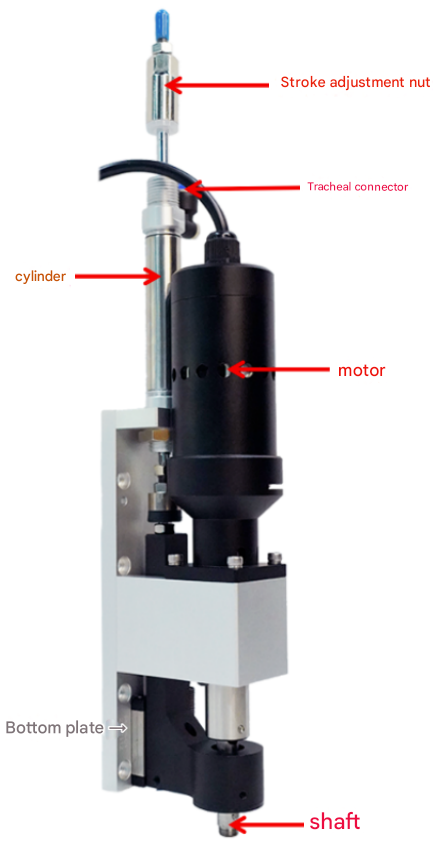

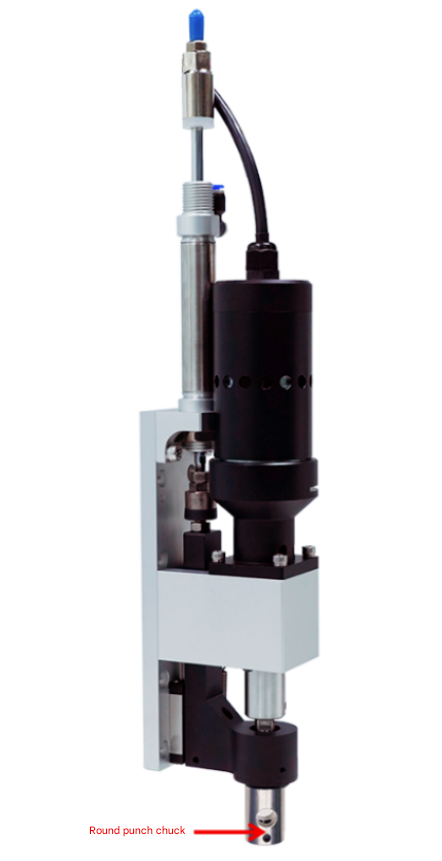

Component Description

Stroke adjustment nut: cylinder stroke fine-tuning device

Trachea joint: solenoid valve air circuit access

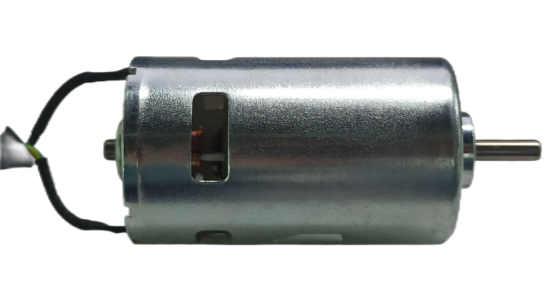

Motor: power source

Base plate: used to install and fix the punch body

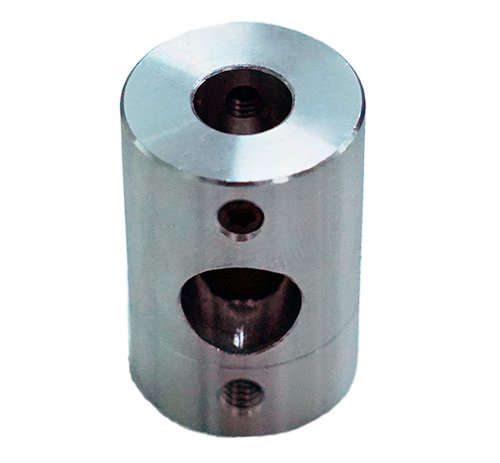

Rotating shaft: punch clamping device

Punch: clamping punch

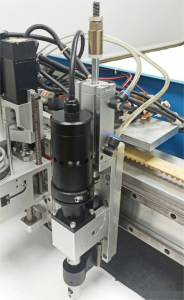

Installation Diagram

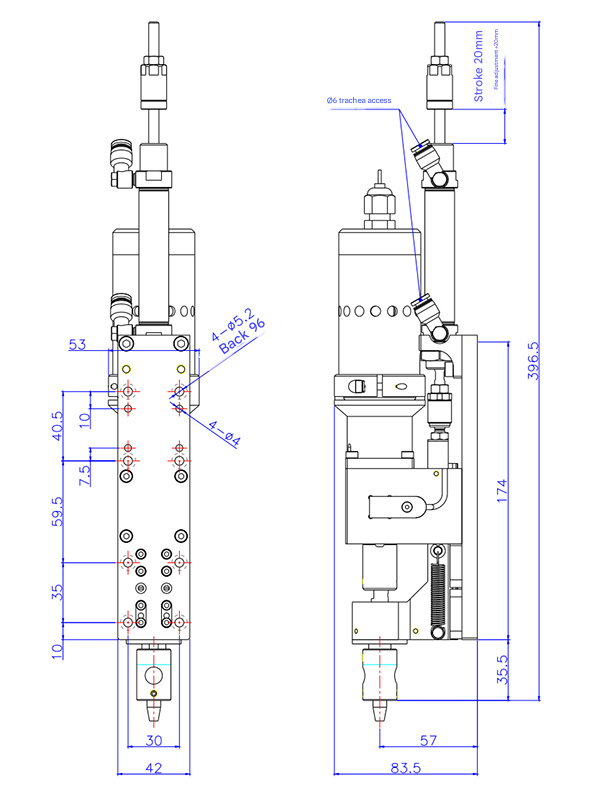

Installation Dimensions

Instructions for use and debugging

（1）Installation and debugging

Use 4 M5 screws to fix the Perce 91180 non-following round punch and Perce 91183 non-following needle punch on the equipment mounting plate. The installation height should be no higher than 20 (+1~+5) mm from the work surface. The motor should be correctly wired and the cylinder should be connected to the air pipe. Depending on the punching effect, the stroke adjustment nut can be slightly adjusted until the best punching effect is achieved.

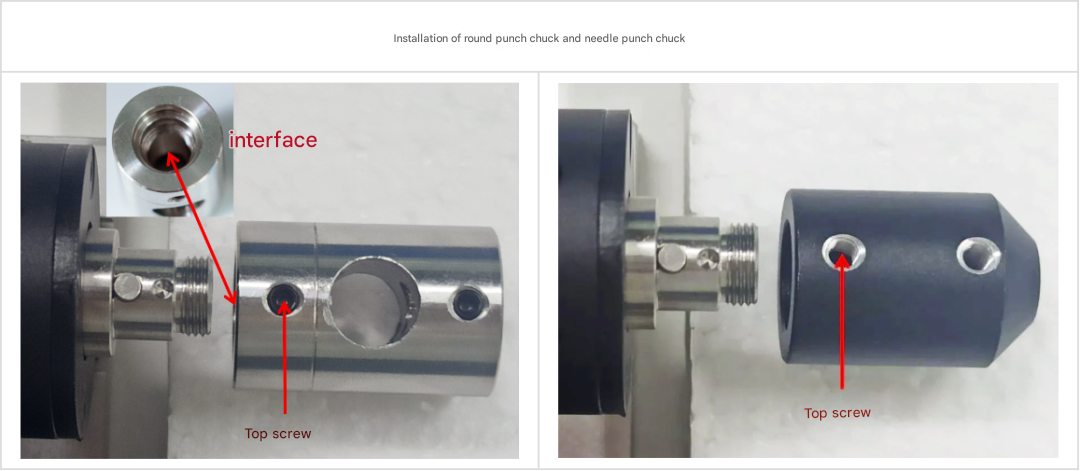

（2）Punch installation

Punch installation: Connect the punch to the shaft, rotate and tighten, and then use a hexagonal wrench to tighten the top screw.

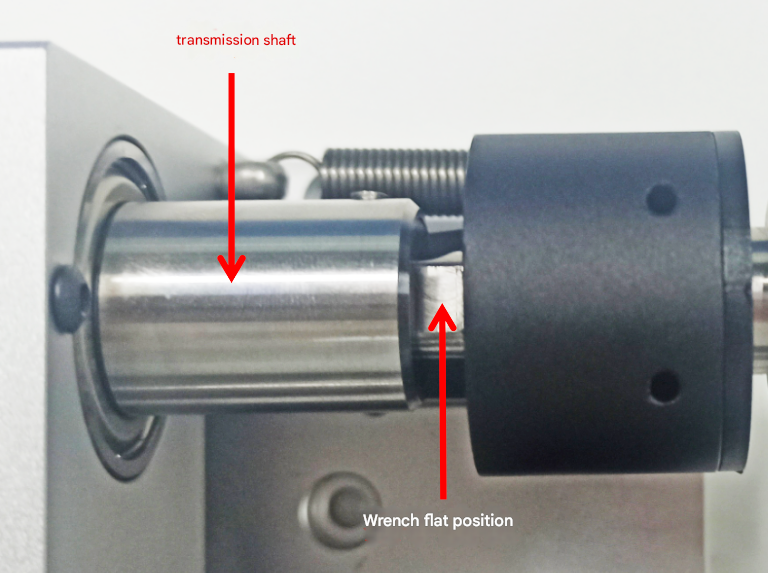

Punch removal: Be careful not to clamp the drive shaft to remove the punch, but fix the flat position of the wrench and then remove the punch.

（3） Oiling and cleaning

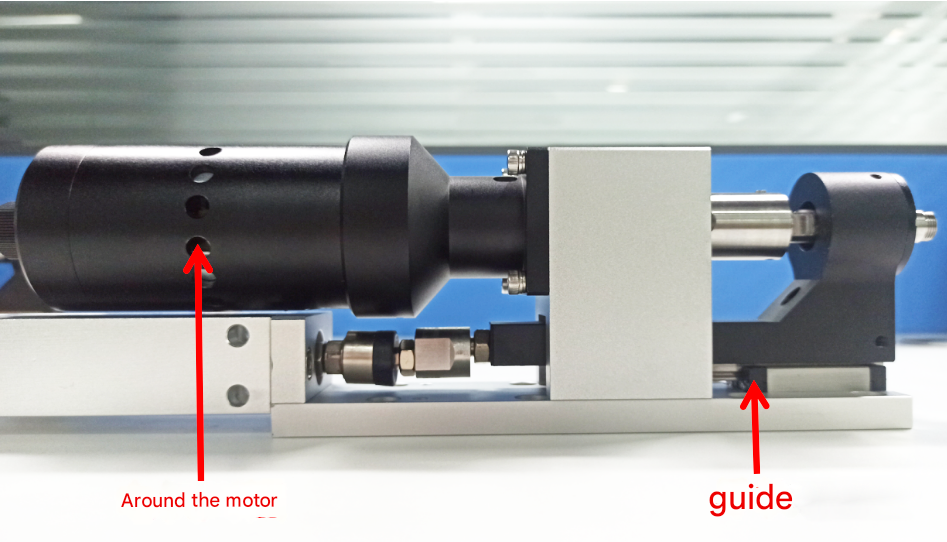

Oiling the guide rails regularly can reduce the wear of the guide rails and make them work better.

Be careful to keep the area around the motor clean and tidy, and clean up any dirt in time.

Wiring Instructions

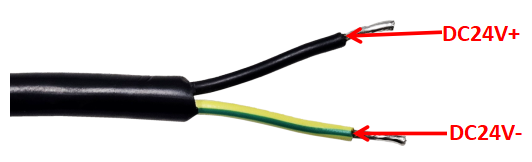

（1）Wiring 1

Black line	DC24V+
Yellow-green line	DC24V-

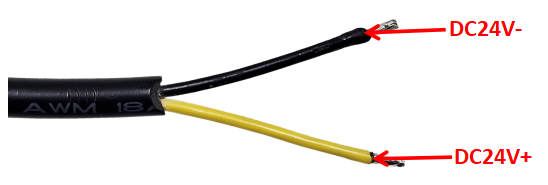

（2）Wiring 2

Black line	DC24V-
Yellow line	DC24V+

Precautions

1. Before powering on, make sure the wiring is correct

2. The incoming air pressure is not higher than 0.6MPa3. Clean and dry compressed gas must be connected. (For example, use a pneumatic triplex to filter, reduce pressure and add oil to the gas to ensure the normal operation of the pneumatic actuator and prevent malfunctions due to impurities, excessive air pressure or lack of oil.)
