Overview

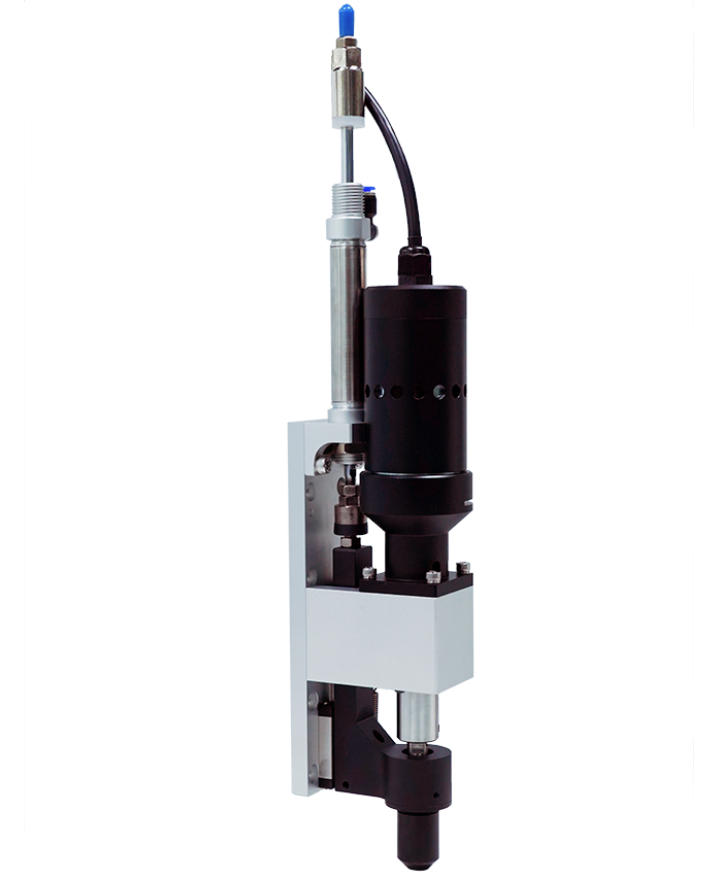

Perce 91180 non-following circular punch and Perce 91183 non-following needle punch are composed of Perce 95095 non-following DC punch holders that clamp circular punches and needle punches respectively. They can punch leather, imitation leather, PU, PVC, EVA, SBR, cloth, cardboard, kraft paper and other materials.

Non-following circular punch and non-following needle punch are driven by the motor to rotate the spindle at high speed, and the cylinder drives the spindle to move up and down quickly, so that the punch can realize the rotary cutting of the material.

Component Description

Stroke adjustment nut: cylinder stroke fine-tuning device

Trachea joint: solenoid valve air circuit access

Motor: power source

Base plate: used to install and fix the punch body

Rotating shaft: punch clamping device

Punch: clamping punch

Installation Diagram

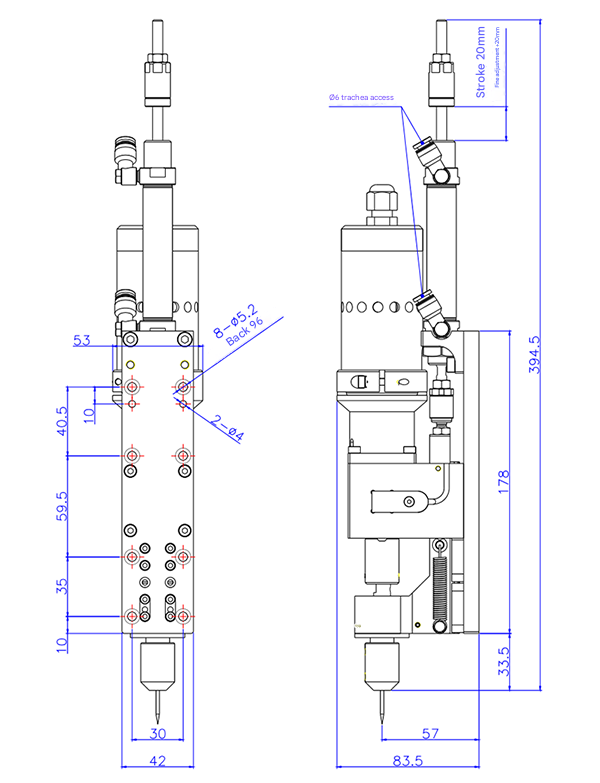

Installation Dimensions

Instructions for use and debugging

（1 ）安装调试

使用4个M5螺钉将Perce 91183非跟随式针式冲孔器固定在设备安装板上。安装高度距工作台面不大于20（+1~+5）mm。电机接线正确，气缸连接气管。根据冲孔效果，可微调行程调节螺母，直至达到最佳冲孔效果。

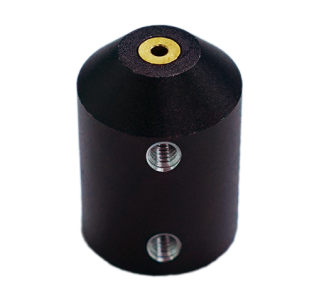

（2）Punch installation

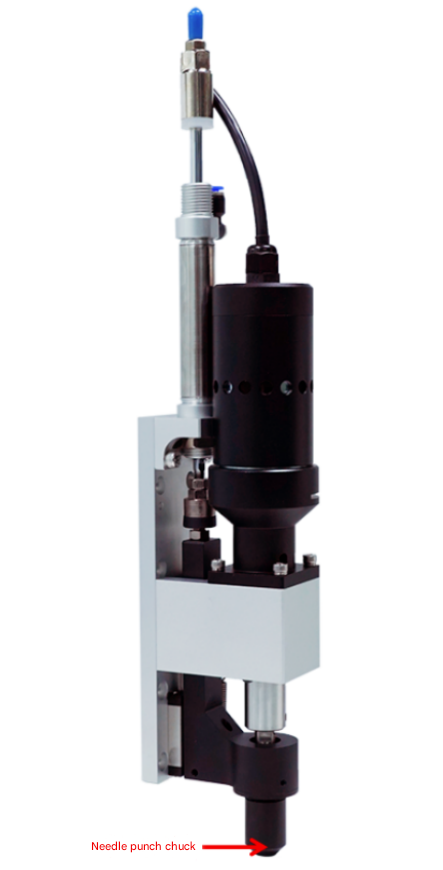

Punch installation: Connect the punch to the shaft, rotate and tighten, and then use a hexagonal wrench to tighten the top screw.

Punch removal: Be careful not to clamp the drive shaft to remove the punch, but fix the flat position of the wrench and then remove the punch.

（3） Oiling and cleaning

Oiling the guide rails regularly can reduce the wear of the guide rails and make them work better.

Be careful to keep the area around the motor clean and tidy, and clean up any dirt in time.

Wiring Instructions

（1）Wiring 1

Black line	DC24V+
Yellow-green line	DC24V-

（2）Wiring 2

Black line	DC24V-
Yellow line	DC24V+

Precautions

1. Before powering on, make sure the wiring is correct

2. The incoming air pressure is not higher than 0.6MPa3. Clean and dry compressed gas must be connected. (For example, use a pneumatic triplex to filter, reduce pressure and add oil to the gas to ensure the normal operation of the pneumatic actuator and prevent malfunctions due to impurities, excessive air pressure or lack of oil.)
