The clip-on brush can be used with a combination blade and is moved by the system. Mark, write text, and draw graphics on materials.
The brush can mark on most materials such as cardboard, cloth, leather, etc.

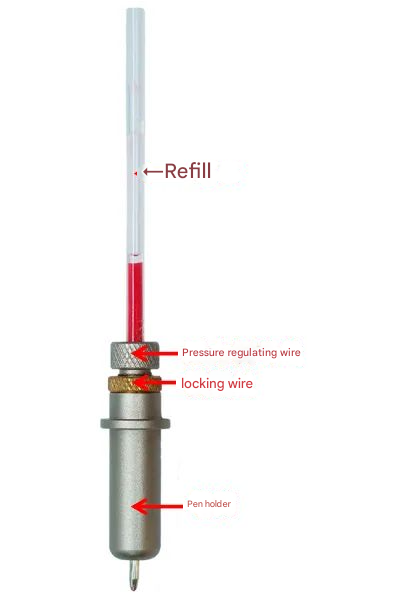

Component Description
Pen core: draw patterns
Pressure adjustment wire: adjust pressure
Locking wire: tighten the brush
Pen holder: hold the brush

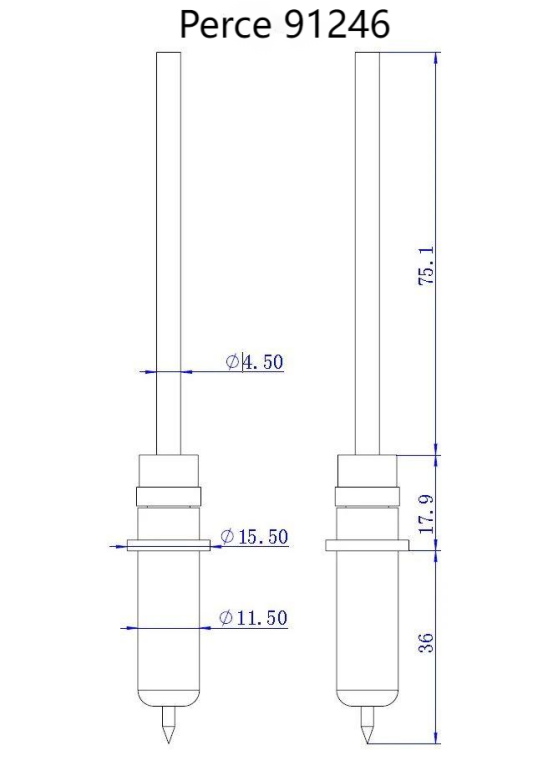

Installation Dimensions
Instructions for use and debugging
（1）Brush Installation

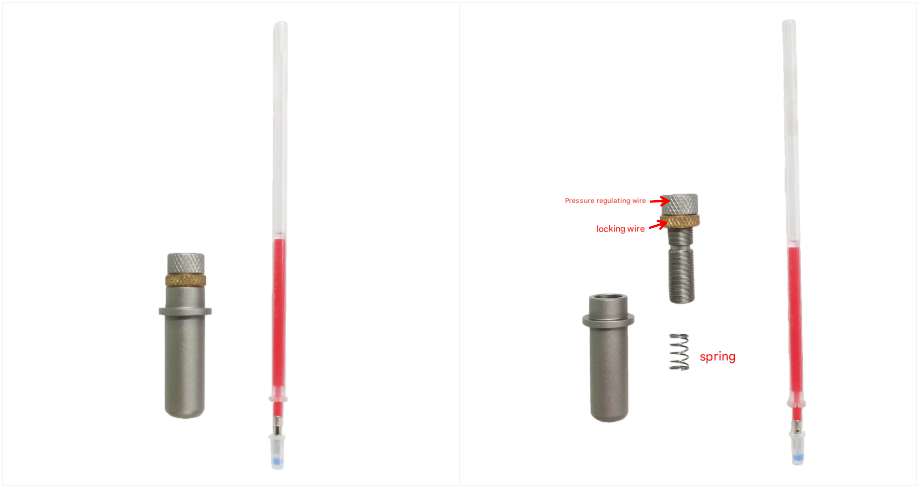

Prepare a refill and remove the locking wire, pressure adjustment wire, and spring from the pen barrel.
Brush Installation

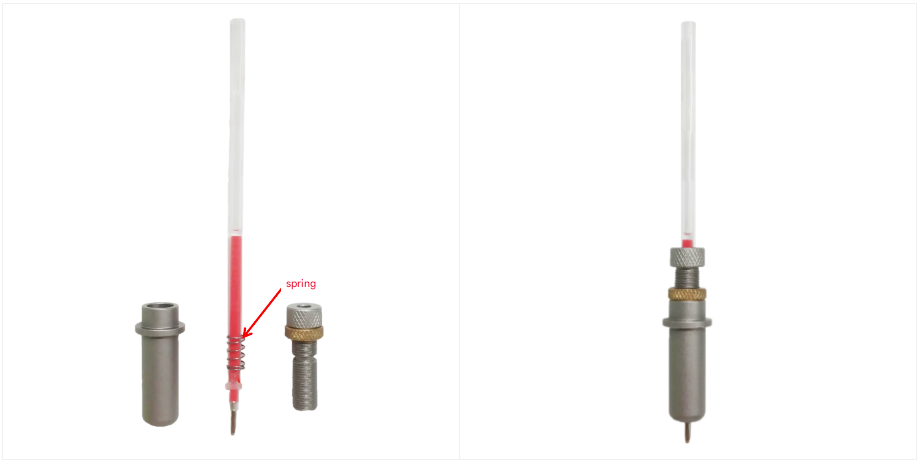

Put the spring on the pen core and put it into the pen holder, then tighten the locking wire to complete the installation of the brush.
（2）Adjust the pressure
The pressure can be adjusted through the pressure adjustment wire. After adjusting to the appropriate position, tighten the locking wire.
Product Parameters
| Order Model | Perce 91246 |
| Overall dimensions/mm | W15.5*H129*D15.5 |
| Weight kg | 0.1 |
Options and accessories

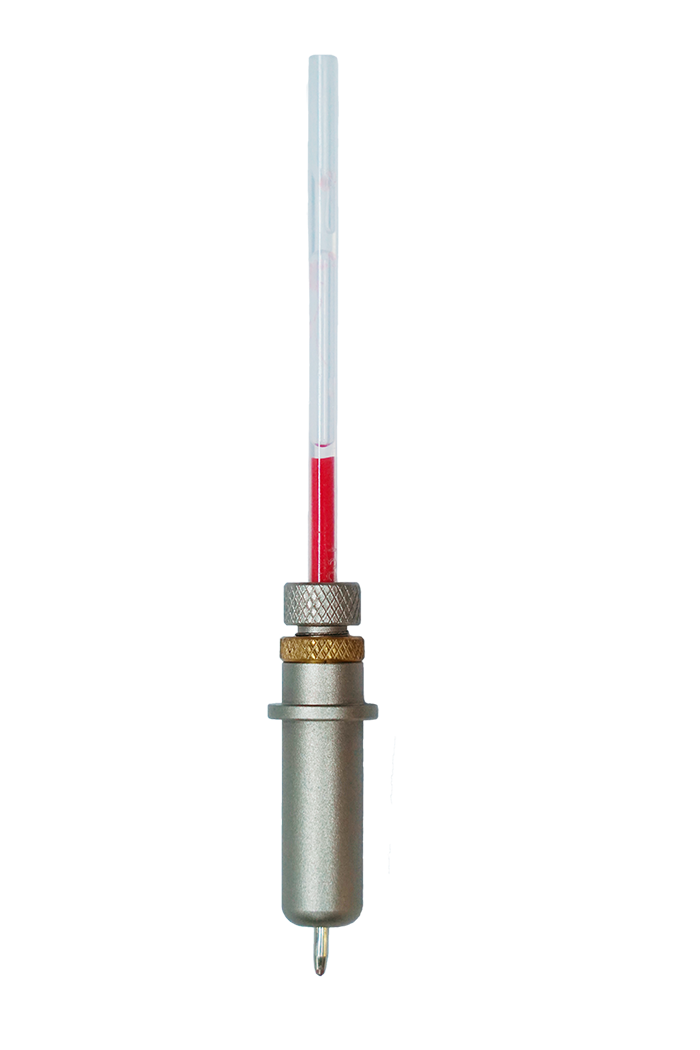

Perce 91246 Clip-On Paintbrush

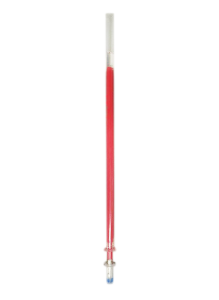

Perce 95028 Refill
