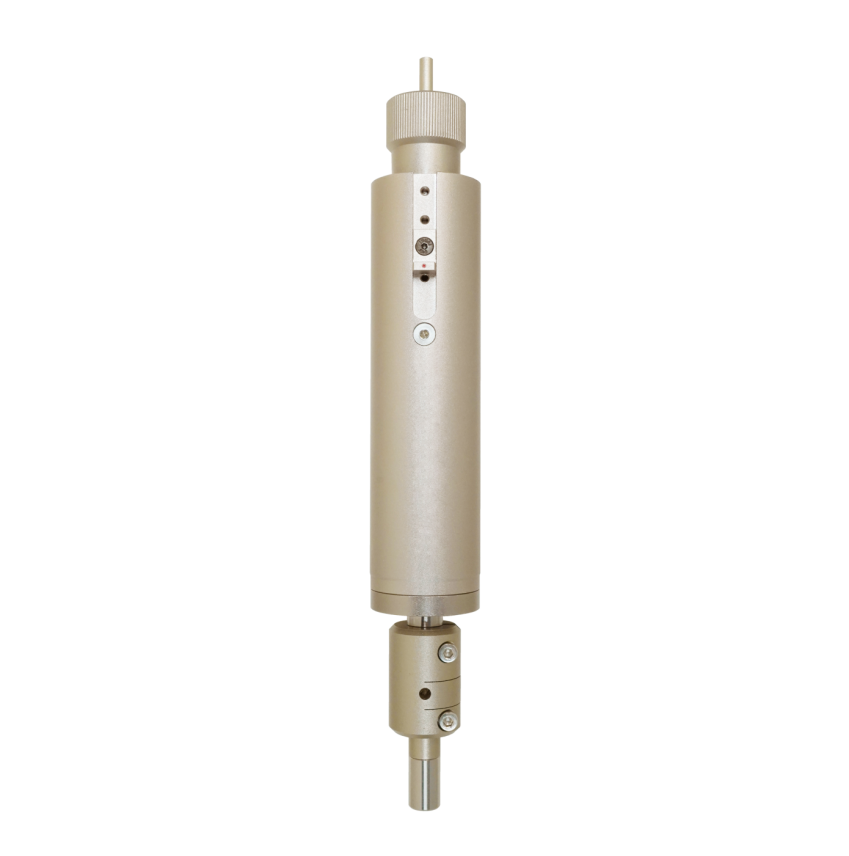

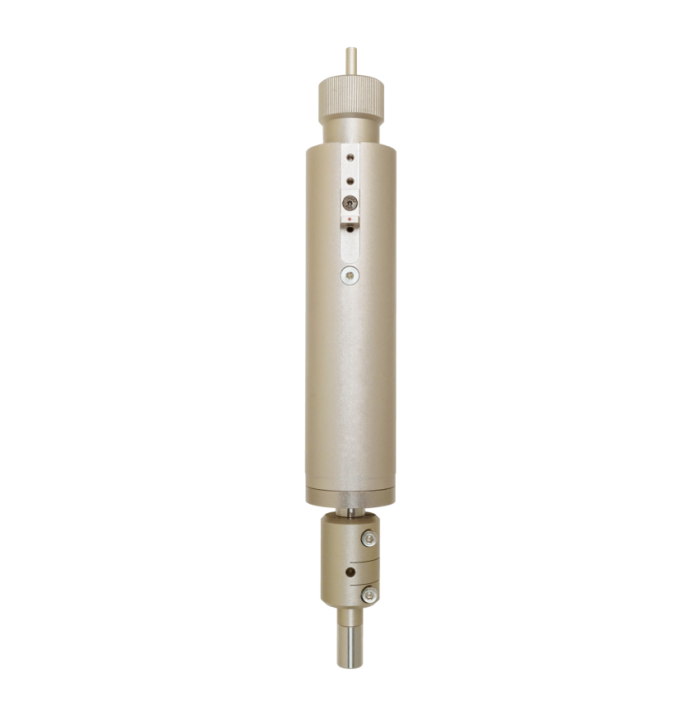

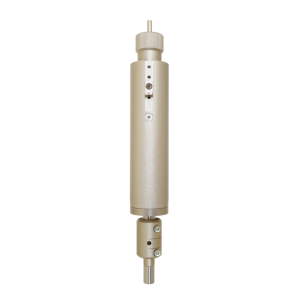

Product appearance and overview

K09 half-cutter can process materials such as stickers, car stickers, reflective stickers, magnetic stickers, PP paper, PP adhesive, rubber cloth, imitation leather, cardboard, soft glass, etc.
The half-cutter can cut materials through the rapid movement of the tool. It allows cutting materials at the fastest processing speed, with high cost performance and low maintenance cost.

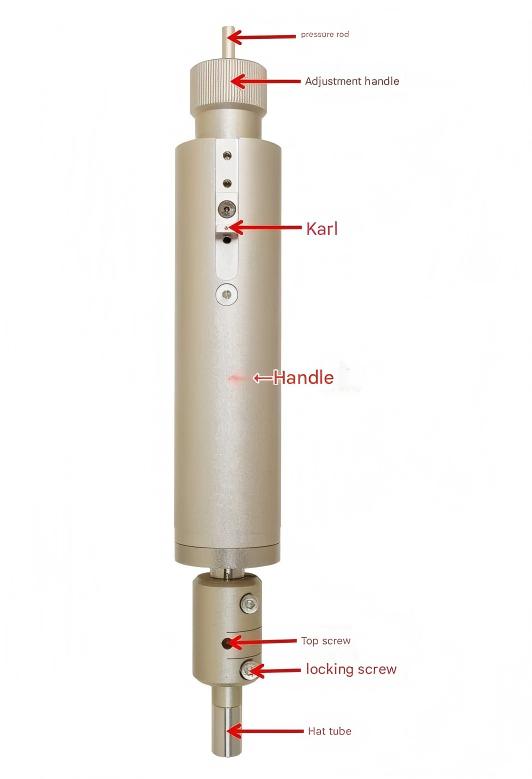

Component Description

Pressure lever: adjust the blade depth.

Adjustment handle: adjust the pressure.

Card ear: used to lock the handle.

Handle: half cutter blade.

Cap barrel: install the blade.

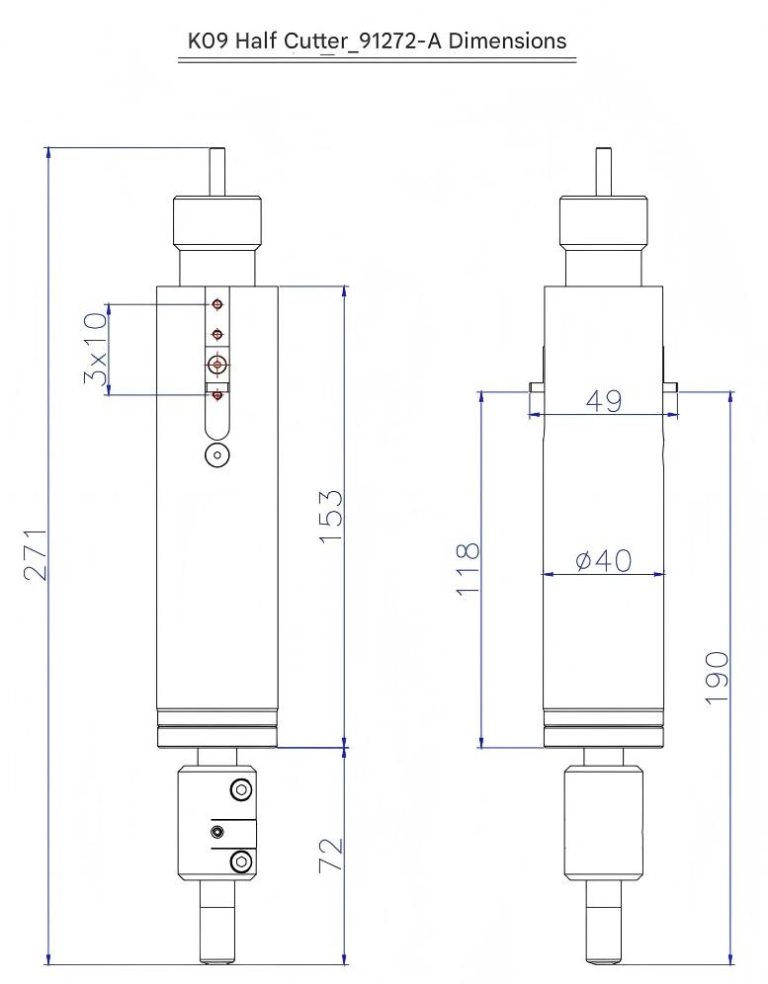

Installation Dimensions

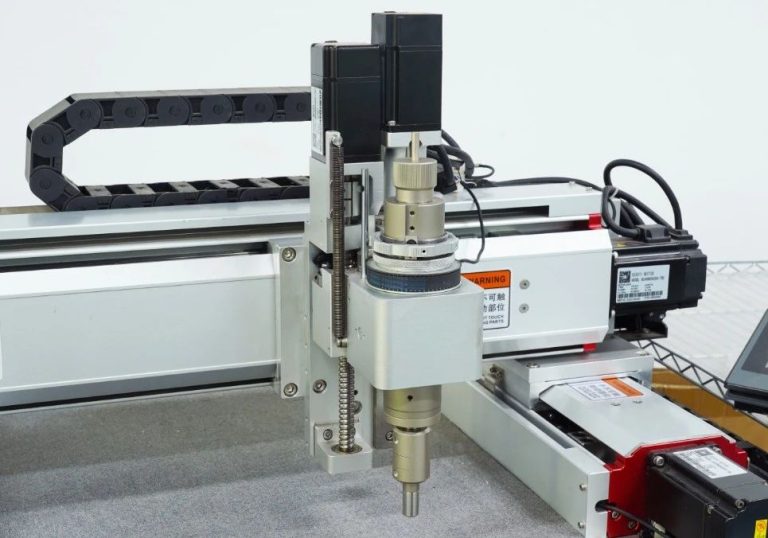

Installation Diagram

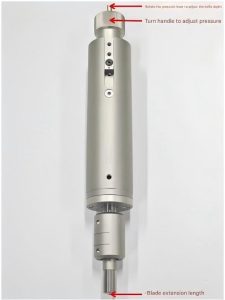

Instructions for use and debugging

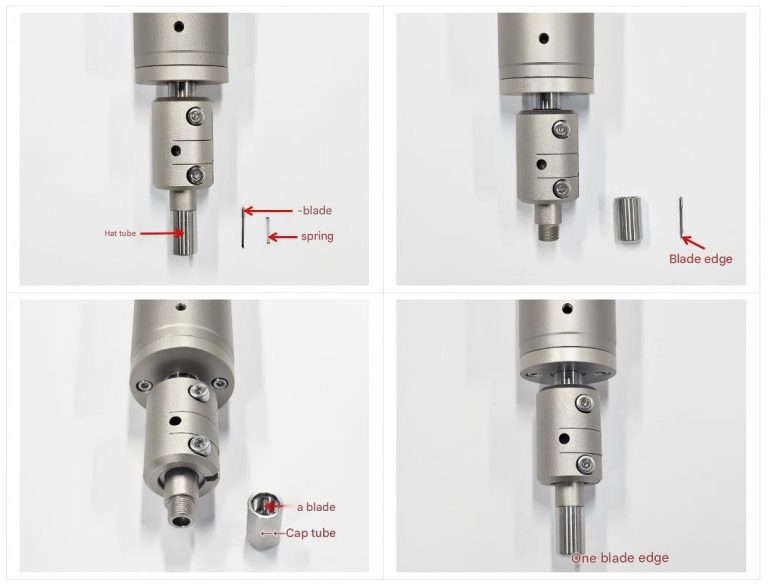

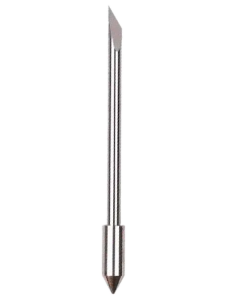

1.K09 Half-Cut Blade - Installation and Removal of Blade

First, unscrew the cap barrel and install the K09 Half-Cut Blade into the spring first, then into the cap barrel, and finally tighten the cap barrel.
Unscrew the cap barrel and you can easily take out the blade.
