Overview
PERCE's important product, tool holder 90, can hold a variety of tools, such as oscillating knives, circular knives, pneumatic knives, drag knives, bevel cutters, milling cutters, pressure wheels, half cutters, table collectors, etc.
It uses extended double guide rails and precision screw drive to achieve Z-axis lifting, and synchronous belt drive to achieve tool rotation.

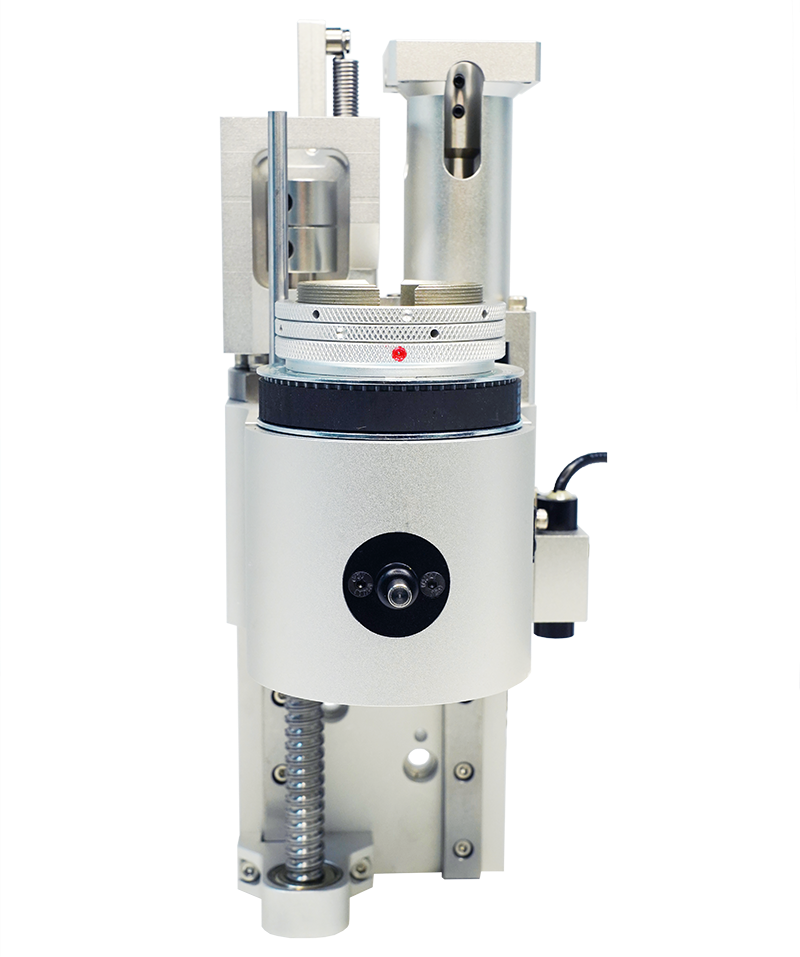

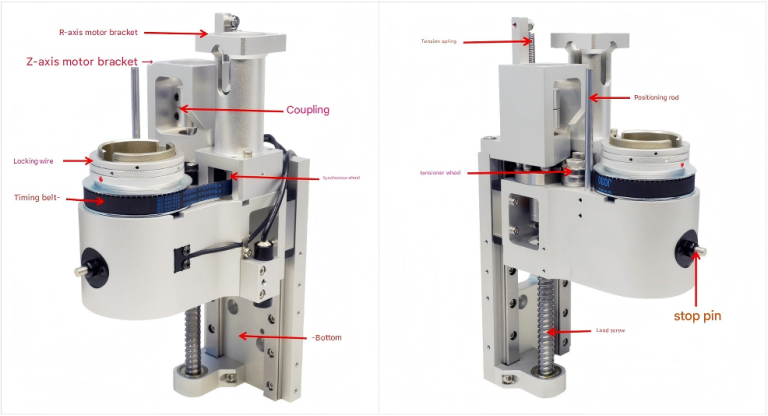

Component Description
Tension spring: prevents the tool from sliding down naturally along the Z axis when the power is off.
Location rod: used to clamp the tool ear to prevent the upper part of the tool from rotating with the knife barrel.
Coupling: used to connect the Z-axis motor and the lead screw.
Locking wire: fix the tool.
Stop pin: when installing the tool and tightening the locking wire, press the stop pin to prevent the knife barrel from rotating.
Base plate: used to fix the tool holder.
Tensioning wheel: used to adjust the tension of the synchronous belt.
Synchronous wheel: installed on the R-axis motor.
R-axis motor bracket: control the installation position of the tool rotation motor.
Z-axis motor bracket: control the installation position of the tool lifting motor.

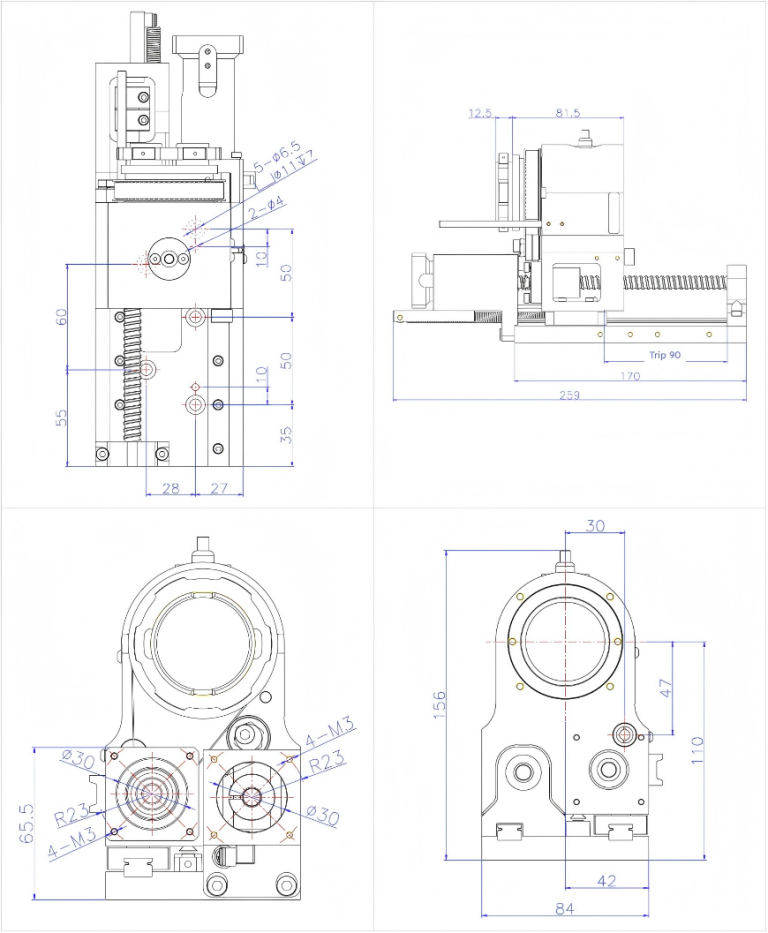

Installation Dimensions

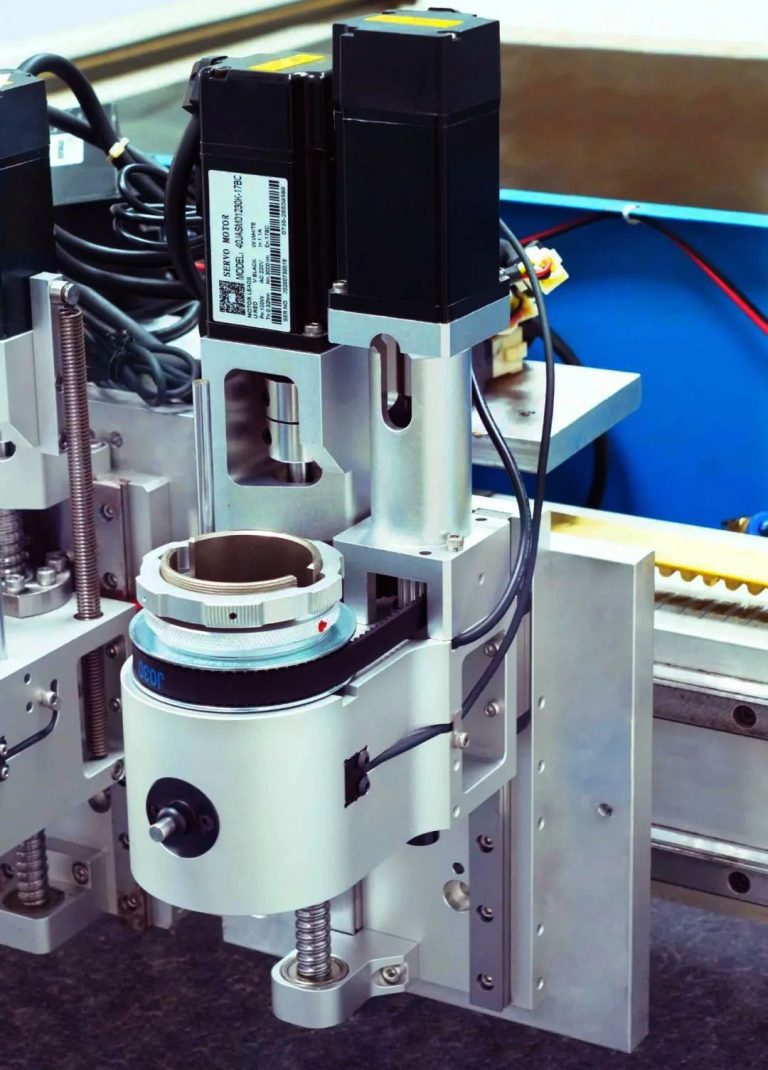

Installation Diagram

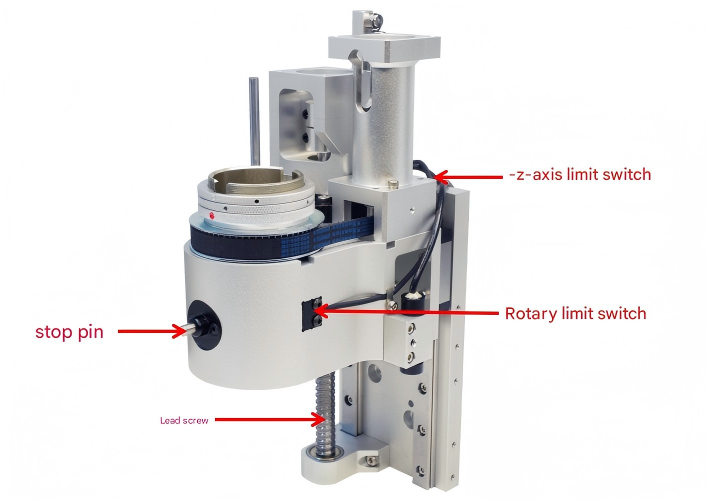

Instructions for use and debugging
Lead and gear ratio: lead of screw rod 4mm, gear ratio of synchronous wheel 1:4.
Limit switch output: default output NPN NO.
Stop pin operation: press the stop pin and rotate the knife barrel (synchronous wheel) until the stop pin is inserted into the hole; at this time, the stop pin is stuck in the knife barrel, and the locking wire can be loosened by hand or wrench.

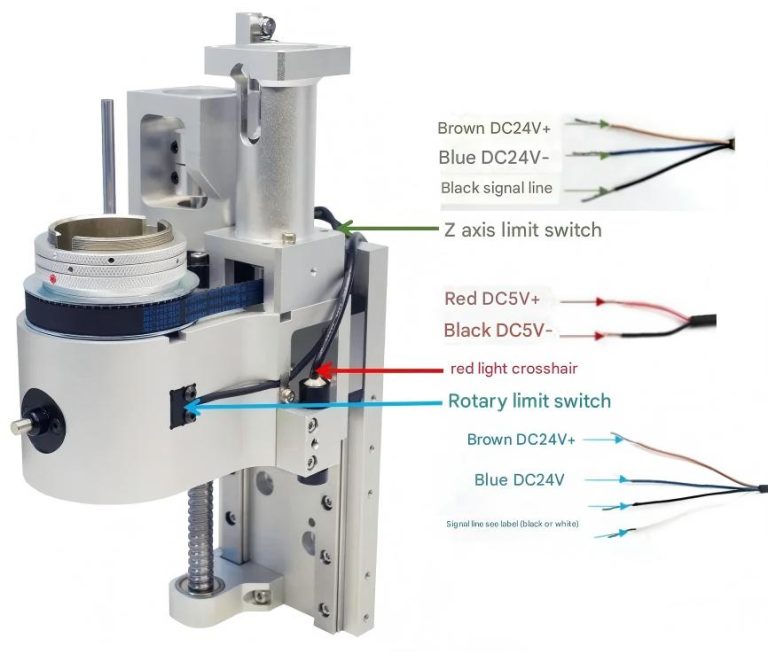

Wiring Instructions
The default power supply for the knife holder red light is DC5V, and the default power supply for the limit switch is DC24V
| Red light crosshair | Red：DC5V+ Black：DC5V- |
| Z-axis limit switch | brown：DC24V+ blue：DC24V- black：Signal line |
| R-axis limit switch | brown：DC24V+ blue：DC24V- Signal line see label (black or white) |
Precautions
- Before powering on, make sure the wiring is correct
- Use shielded cables to avoid interference
- Make sure the coupling is tight
Order Model
Product Parameters
| Order Model | Perce91240-B |
| Number of tools that can be installed | 1 |
| journey | 87 |
| Dimensions | W84/H259/D156 |
| Weight | 2.5 |
Shipping Configuration
Optional accessories
Knife seat pressure plate
Servo Motor
Optional spare parts
Couplings
Small synchronous wheel of knife seat
Knife holder belt
Rotary limit switch
Z-axis limit switch
Red light indicator
